Waterjet cutting machine

Waterjet cutting systems are used when thermal influences on the material are unwanted and highest precision is required. They convince with flexible processing options for a multitude of cutting tasks on a wide variety of materials.

  • Highly precise and without thermal influence

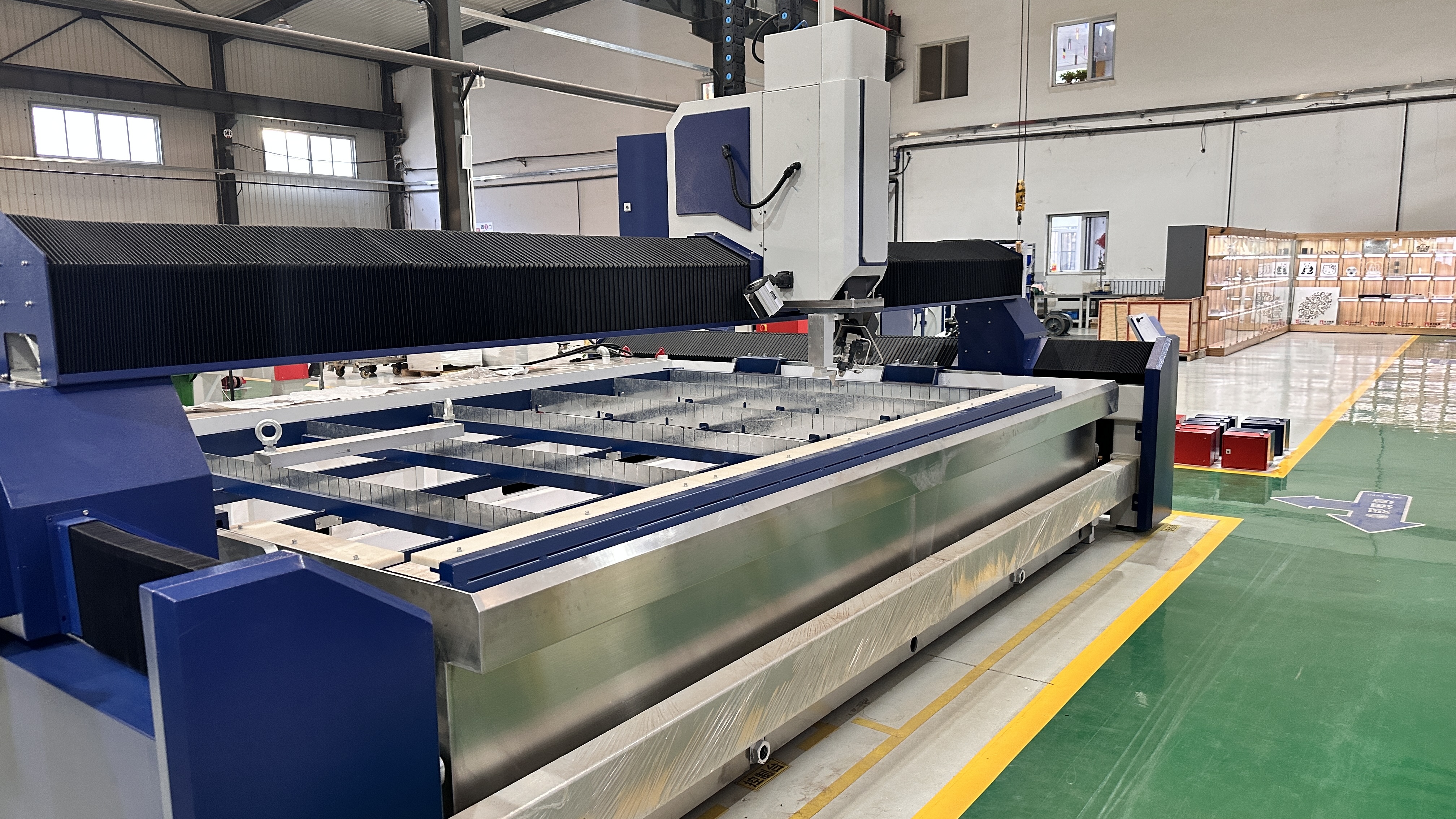

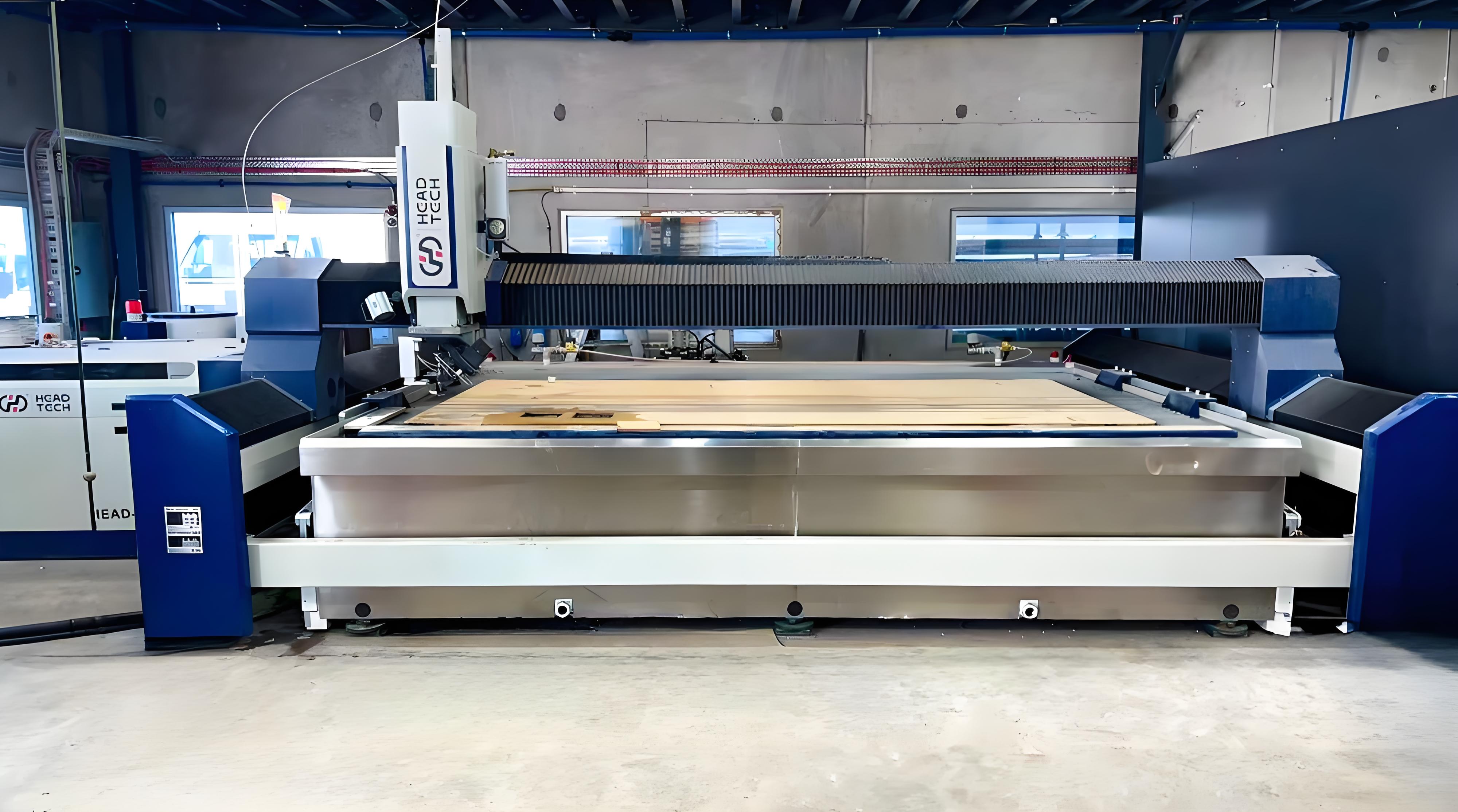

    This is a high-precision CNC waterjet cutting machine designed to machine a wide variety of materials, including those that cannot withstand thermal or mechanical stress.
    Pure water or abrasive cutting can be applied to metal, stone, marble, tempered glass, ceramics, plastics, wood, thick corrugated cardboard, foam and sandwich materials, etc.

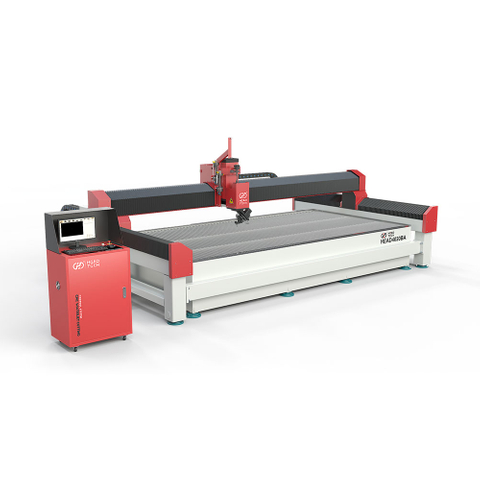

    The machine can be equipped with a 75 degree 5-axis waterjet rotator for bevel cutting, combined with plasma, pipe and profile cutting or tapping. Additional features include Additive Bevel Processing (ABP) and Taper Compensation (ABC).

    • Cutting accuracy +/- 0.1mm
    • Positioning accuracy +/- 0.02mm
    •PC control 17" touch screen
    •NcStudio PC1MC=6A software *changes DXF documents from AutoCAD into NC process
    •Serial communications between PC and CNC. Open database can shore parameter, click the material parameter will be loaded automatically
    •Calculate length of line and cut-in automatically
    •Control cut-out and cut-in automatically
    •High Pressure Pump from 3800 Bar/55,000 Psi - 4137 Bar/60,000 made by Accustream/Hypertherm USA
    •Cooling system
    •Abrasive feeder
    •Water cleaning gun
    •Tool kit
    •Consumables for one year
  • Technical specifications

    X Y Positioning Accuracy ≤±0.05 mm per 300 mm
    Positioning Accuracy +/-0.02 mm
    X,Y dry-run Speed  0-15m/min (if need 30m/min speed,we can do as request )
    Cutting Accuracy  ±0.1mm
    Repeat Accuracy   ≤ ±0.03mm
    Max. Speed X, Y  10000mm/min

    • Water jet working table independent of the frame, eliminate vibrations and  temperature deformations; keep long time of work.
    • Water tank is reliable and durable, made of steel 5 mm thick.Height 750 mm, convenient for loading and unloading
    • • Slope-type folding cloth protection structure prevents the accumulation of sand splashed during water cutting, which affects the accuracy and life of the stroke.
    • • Z axis is equipped with a lighting system, which is convenient for monitoring and equipment maintenance during equipment operation
    • • Dedicated thick metal cutting water tank, platform load-bearing capacity is 500kg more than similar competing products, longer service life


    • • Integrated integrated CNC system, suitable height, ergonomic design concept The display can be rotated 360 degrees to meet the needs of the operator from all angles
    • • Upgrade to IP65 waterproof and dustproof computer, keyboard and mouse IP65
    • • Increase the splash protection to improve the safety and life of the equipment
    • • An air-conditioning control system is added inside the CNC cabinet. Most of the cooling systems on the market are still cooled by fans to ensure the operating temperature of the electrical components of the equipment and improve the stability of the equipment.
    • • A lighting system is added inside the CNC cabinet to facilitate equipment maintenance and reduce the difficulty of operator maintenance2023-3-1 集成控制柜细节展示(一体控制柜)32023-3-1 集成控制柜细节展示(一体控制柜)1
    • • Function to continue from the same point after stopping.
    • • Automatic programming function.
    • • Pre-cut path simulation function
    • • Automatic tool compensation adjustment function.

    图片9图片10

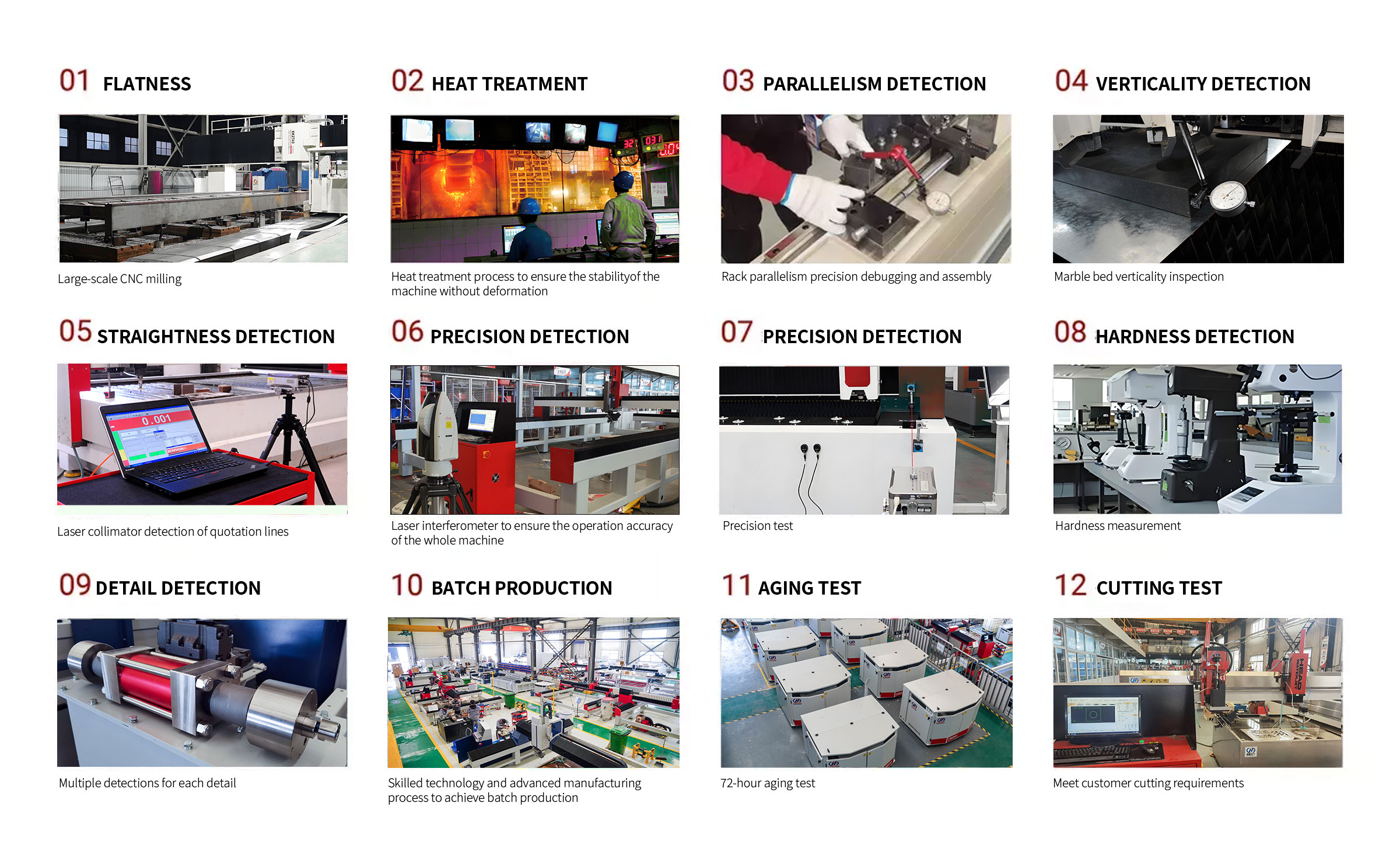

Prioritizing Quality Consistency And Accuracy

We're HEAD Waterjet and We Also Offer Customized Cutting Solutions

We manufacture and provide highly productive, reliable, and intuitive waterjet solutions.

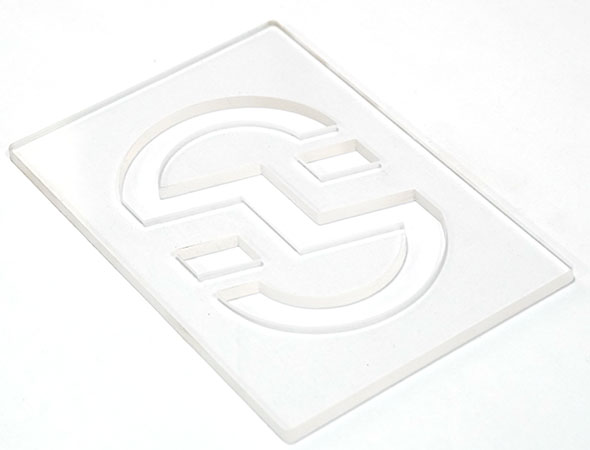

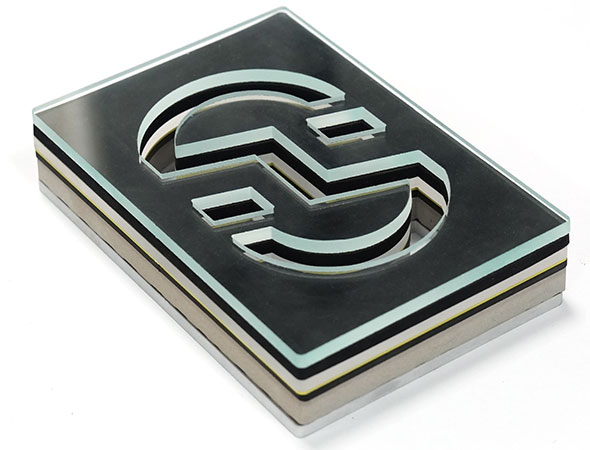

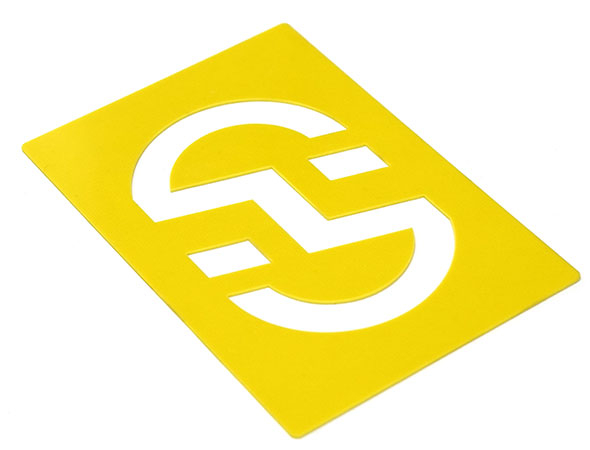

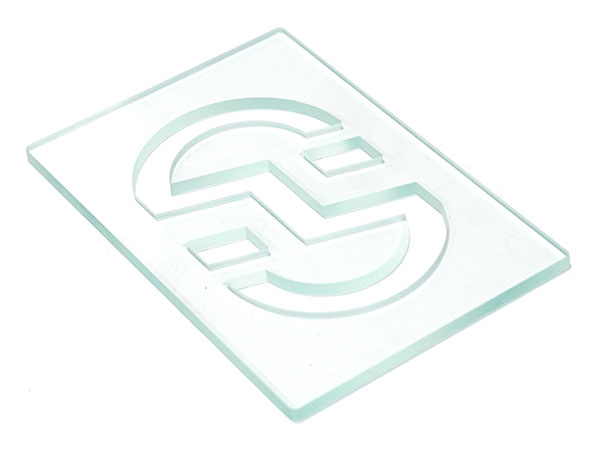

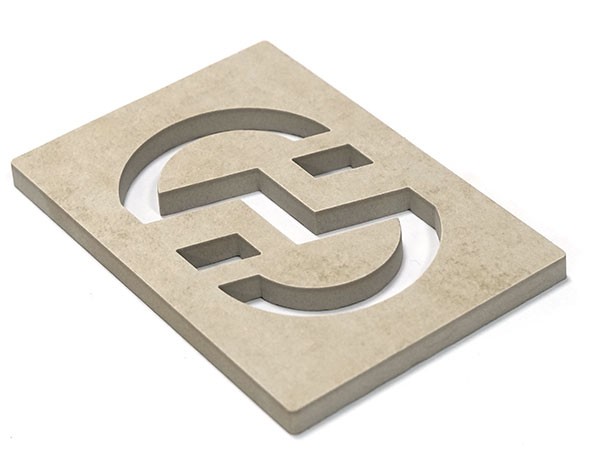

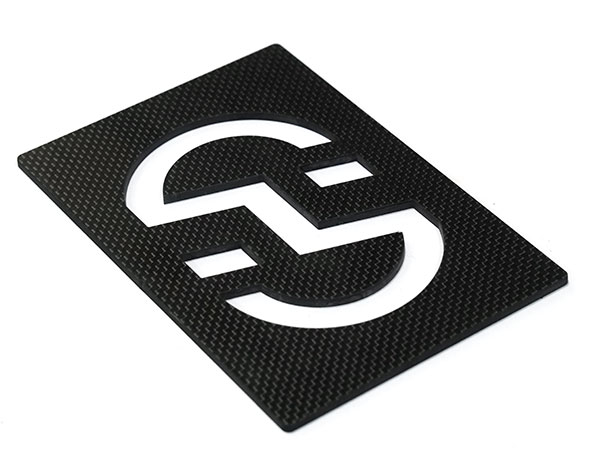

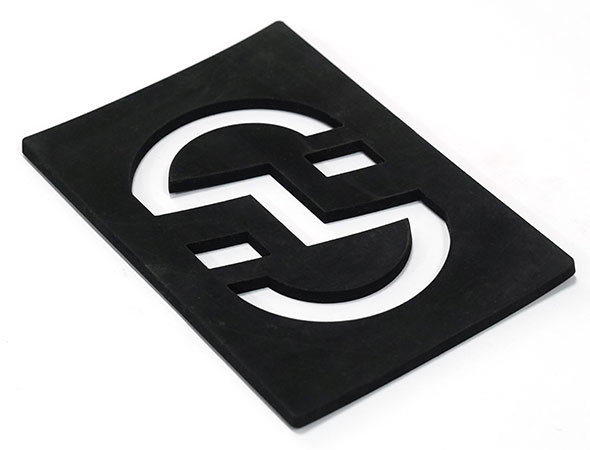

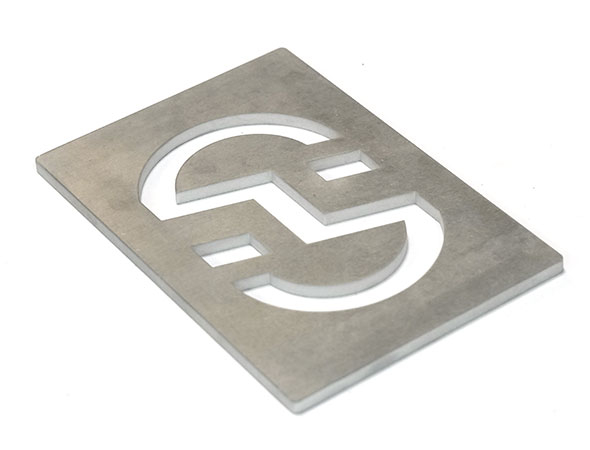

Samples Of Water Cutting Here
In order to give you a more intuitive understanding of our products, we have provided free sample cutting, hoping that you can quickly understand the working principle and characteristics of our water cutting
Professional Local After-Sales Techincal Team
We provide expert advice from qualified technicians. We are committed to providing leading edge support for waterjet cutting machines to keep the industry moving forward.
Industries We Serve​​​​​​​

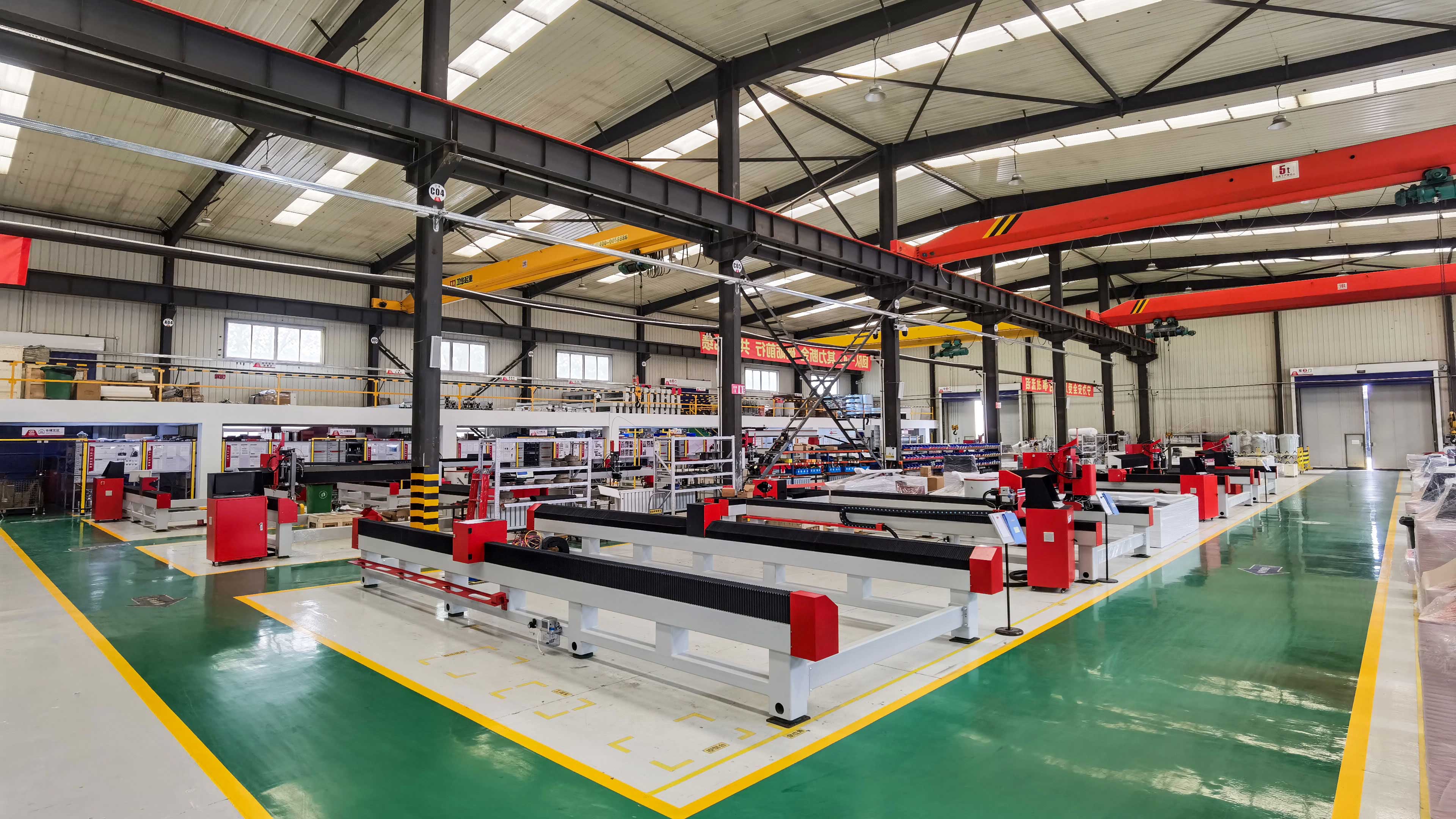

For over a decade, we have built and installed thousands of waterjet cutting machines in a diverse portfolio of industries to meet specific manufacturing and material cutting needs.

As Head has a strong research and development, production sales and service team, Shenyang Head Science and Technology Co.,Ltd has become well-known enterprises in waterjet field.
