Views: 0 Author: Site Editor Publish Time: 2025-09-11 Origin: Site
Water jet cutting machines are widely used in industries like aerospace, automotive, stone fabrication, and general manufacturing. They cut using ultra-high-pressure water (sometimes mixed with abrasive), delivering precision without heat distortion.
When purchasing a waterjet, the key decision is whether to choose a 3-axis or a 5-axis machine. Both are powerful, but their capabilities, costs, and applications are different. This guide explains the differences to help you make the right investment.
A 3-axis machine moves in X, Y, and Z directions. The cutting head stays vertical to the material, making it perfect for flat, 2D profiles.
Lower purchase price and maintenance cost.
Easier to program and operate, suitable for beginners.
Reliable for sheet cutting in steel, stone, glass, composites, and plastics.
Cannot cut angled edges or bevels.
Complex shapes may require multiple setups or secondary processing.
Best for: workshops producing panels, plates, gaskets, and flat stone or glass products.
A 5-axis system adds two rotational axes to the X, Y, and Z. This allows the cutting head to tilt and rotate, enabling angled and 3D cuts.
Cuts bevels, chamfers, and complex 3D geometries in one setup.
Reduces secondary machining and manual finishing.
High precision for demanding industries like aerospace and automotive.
Compensates for taper when cutting thick materials.
Higher initial investment and operating cost.
Requires skilled operators and advanced CAM programming.
Best for: industries needing advanced geometry: aerospace, auto parts, stone countertops, and custom fabrication.
| Feature | 3 Axis Waterjet | 5 Axis Waterjet |
|---|---|---|
| Cutting Ability | 2D vertical cuts only | 2D + 3D, bevels, angles, and complex contours |
| Ease of Use | Simple programming, beginner-friendly | Requires skilled operators and advanced software |
| Investment | Lower cost, less maintenance | Higher cost, more complex maintenance |
| Efficiency | May need extra processes for beveled edges | Cuts bevels and angles in one setup, saving time |
| Applications | Flat sheets, gaskets, panels, signage | Aerospace parts, automotive components, mitered stone, prototypes |
Aerospace: Titanium and composite components with beveled or angled edges.
Automotive: Engine parts, gears, and welded structures with precision bevel cuts.
Stone Fabrication: 45° miter cuts for countertops and custom stone inlays.
Job Shops: Weld edge preparation and multi-angled prototypes, reducing secondary work.
R&D and Prototyping: Produces one-off designs quickly, directly from CAD.
Choose 3 Axis if you mainly cut flat sheets and need a reliable, cost-effective machine.
Choose 5 Axis if you work with complex geometries, angled cuts, or want to expand into higher-value industries.
Think about your current projects, future business direction, and ROI. A 3-axis is excellent for everyday cutting, while a 5-axis can win contracts in aerospace, automotive, or high-end architectural fabrication.
HEAD Waterjet is one of the top three Chinese exporters of water jet cutting machines, trusted by customers worldwide for over 20 years.

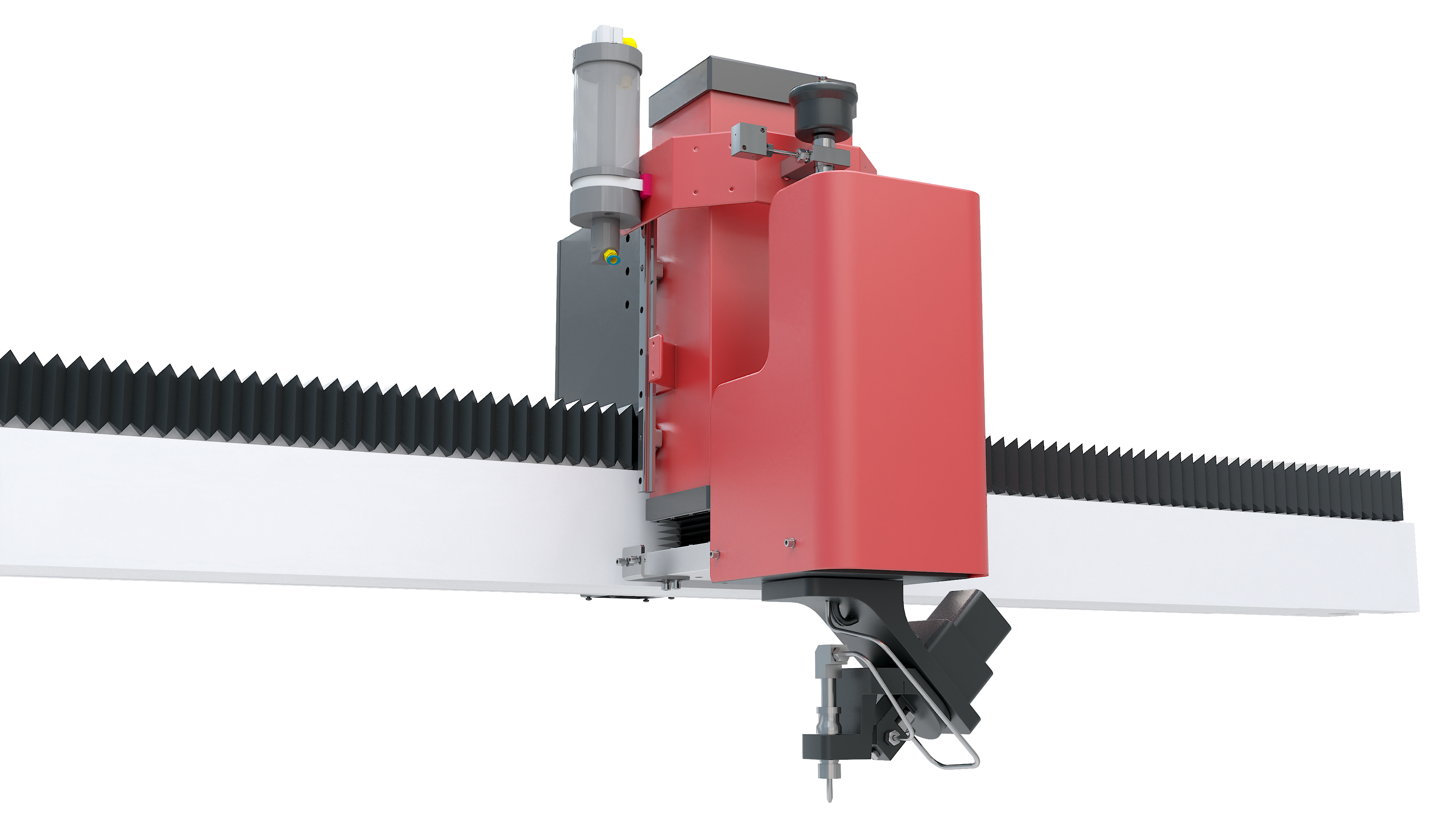

Advanced 5-axis heads with ±70° tilt for bevel and contour cutting.
CE & SGS certified machines, tested under strict quality standards.
Wide range of models: 3-axis, 5-axis, robotic, and containerized waterjet systems.
Reliable global after-sales service at reasonable costs.
Designed for 24/7 continuous production, maximizing uptime.
With engineering expertise and proven reliability, HEAD Waterjet helps manufacturers achieve precision, flexibility, and long-term value.
