Waterjet Metal Cutting Machine




Suitable for steel, stainless steel, aluminum, copper, titanium, and more
High-precision cold cutting with no heat-affected zones
— perfect for all types of metal without distortion or material damage


Easily cuts even hardened steel and titanium
— with zero toxic emissions and recyclable water for a greener process

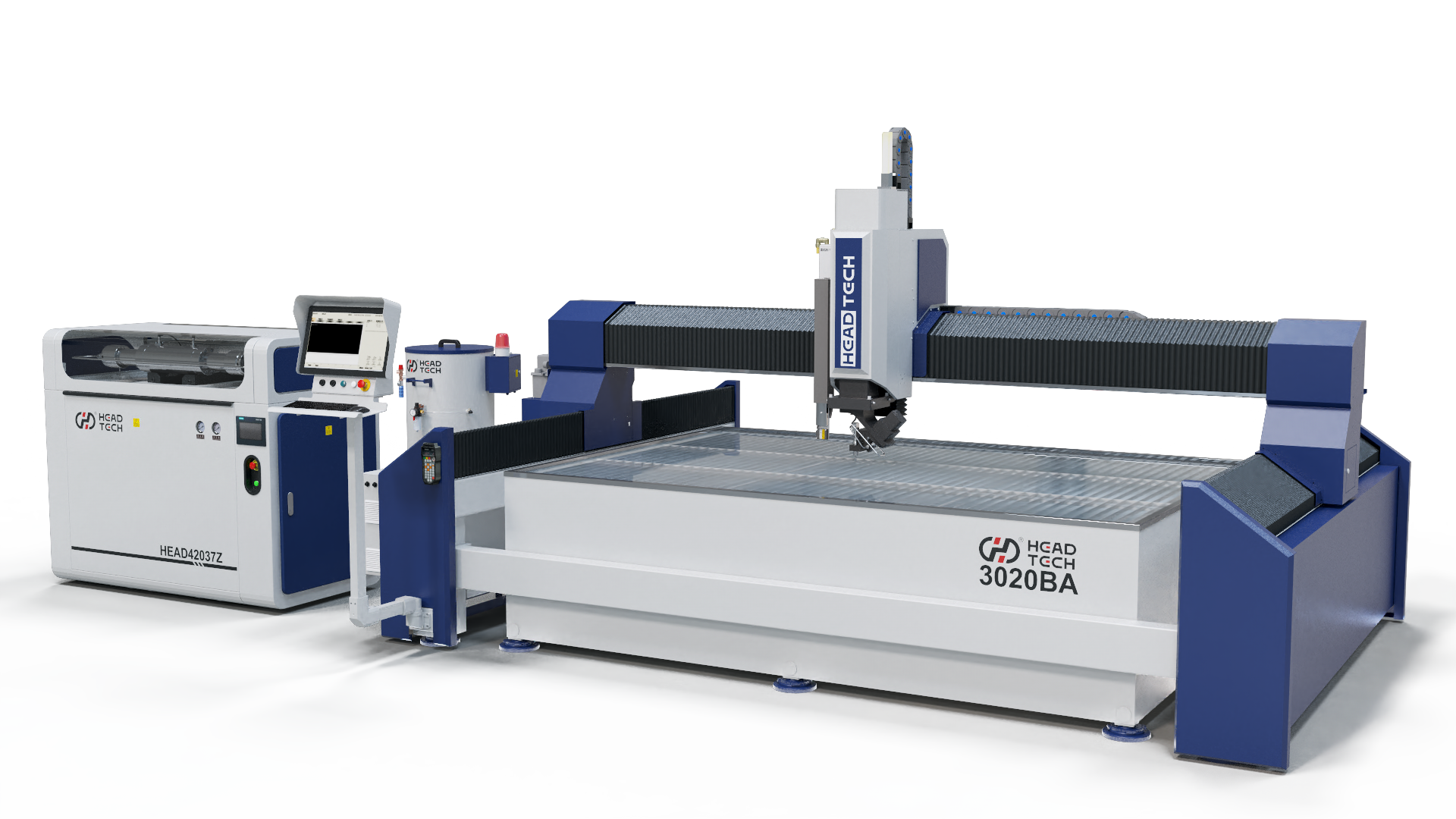

Water jet cutting machine
Water jet Cutter Technical Parameters
Model HEAD3020BA-5AC/HEAD42037Z-B
Working area 3000*2000 MM
Z-axis 150~250 MM
Cutting Accuracy ± 0.1 MM
Drive Type Servo
Repeat positioning accuracy ±0.05 MM
Platform load-bearing capacity 500 Kg/㎡（optional:1500 Kg/㎡）
Pressure  420 MPA
Cutting Ability 150 MM
Auto Abrasive Supply System 200KG（optional:400KG/1000KG
Pump type Intensifier
Max pressure 420Mpa(6000psi)
Working pressure 50-380MPa（7200-55000psi）
Max orifice diameter 0.3mm
Water flow rate 3.7L/min
Maximum oil pump flow 119L/min
Pressure ratio 1:20
Main motor power 37KW(50hp)
Voltage 380v 50hz
waterjet cutting machine
Water jet cutting machine
Water jet cutting machine
waterjet cutting machine
High Pressure Pump
Head Water jet machine adopt a liquid-to-liquid pressurization mode to implement pressurization, ensuring smooth and efficient pressure increase. At the same time, imported high-quality parts are selected to ensure the continuous stability and reliability of long-term pressure output.
Software CAD-CAM
Head Water jet offers a comprehensive suite of software solutions tailored to meet diverse customer needs, including WEIHONG, ECS, IGEMS, PEGASUS, DDX. These platforms are designed to enhance the efficiency, precision, and versatility of waterjet cutting operations
Laser sensor height measurement
Laser sensor height measurement adopts non-contact scanning. When scanning, it does not come into contact with the cutting material, and will not scratch or squeeze the cutting material, which can meet the high surface quality requirements of customers for cutting materials.
Abrasive supply system with alarm function
Highly automated: It has the function of storing sand and automatically transferring abrasives to the CNC work platform to complete cutting, while also providing a prompt for insufficient sand to avoid problems caused by insufficient sand.
  • 2025 New Product 2000*6000mm Waterjet Cutting Machine
    Quick View
    More Details  >
    2025 New Product 5 Axis 2000*6000mm Water Jet Cutter
    Quantity:
    		Stock 0
    Add to Basket
    2025 New Product 5 Axis 2000*6000mm Water Jet Cutter
    Brand: HEAD
    Product Code: HS code: 84565000
    Model: HEAD2060BA-5AC
    Brief:
    HEAD Waterjet's metal cutting machine utilizes advanced waterjet technology, enabling precise bevel cuts of 45~60 degrees and seamless edges, making metal components more refined and durable. Waterjet cutting also minimizes material waste and enhances productivity. For applications requiring high precision and strength, such as metal fabrication or industrial parts, waterjet-cut metal offers superior results.
  • 3 Axis1500*3000mm Cantilever Waterjet Cutting Machine
    Quick View
    More Details  >
    3 Axis1500*3000mm Cantilever Waterjet Cutting Machine
    Quantity:
    		Stock 0
    Add to Basket
    3 Axis1500*3000mm Cantilever Waterjet Cutting Machine
    Brand: HEAD
    Product Code: HS code: 84565000
    Model: HEAD1530BB
    Brief:

    HEAD1530BB Cantilever-Style Waterjet Cutting Machine

    The HEAD1530BB is a cantilever-style waterjet cutting machine designed for precision and versatility. Engineered by HEAD Waterjet, this model offers advanced features and reliable performance, making it a top choice for industries with diverse cutting needs.
  • 2025 New Product 4000*2000mm 3 Axis Waterjet Cutting Machine Factory Price
    Quick View
    More Details  >
    2025 New Product 3 Axis 4000*2000mm Waterjet
    Quantity:
    		Stock 0
    Add to Basket
    2025 New Product 3 Axis 4000*2000mm Waterjet
    Brand: HEAD
    Product Code: hs code:84565000
    Model: HEAD4020SA
    Brief:
    4000*2000mm 3 Axis Waterjet Cutting Machine Factory Price
  • TOP1
    Water jet Cutter
    Exports In China
  • 24/7
    Customer Support
  • 48
    Fast Spare Part Replacement Hours​​​​​​​

HEAD Water Jet
What it is. How it works. Why you need it

Factory Supply Great Price
Product Performance Section

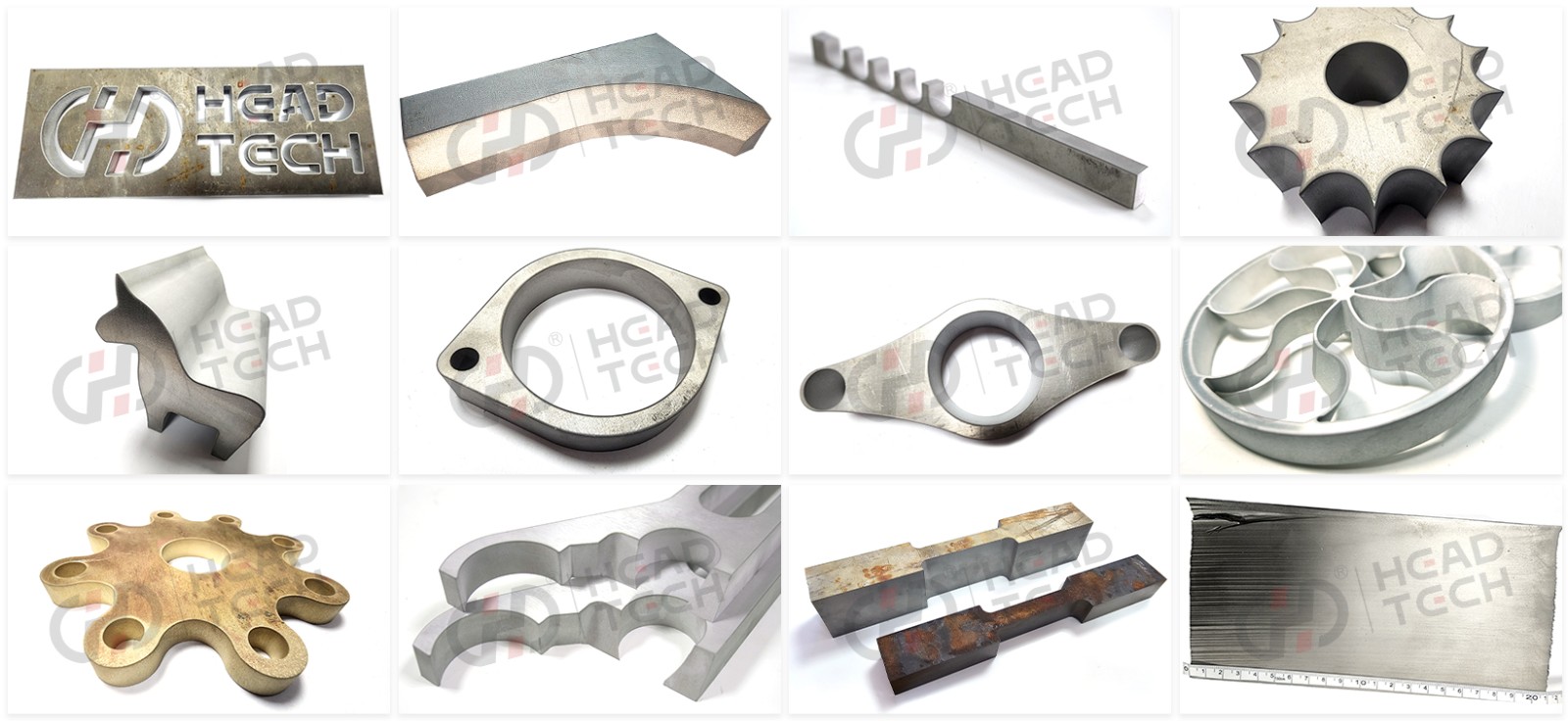

Gallery

Below you can see pictures of our customers' finished products and latest works using HEAD waterjet cutting machine. Products and works include Steel, stainless steel, aluminum, copper, titanium and high-end projects. Waterjet cutting of metal does not produce hazardous waste, which is an environmentally friendly alternative to other cutting technologies.
metal water jet cutting machine



World-Class Support and After-Sales Services

At HEAD Waterjet Competitive Price Highly precise, eco-friendly, we’re committed to keeping your business running smoothly. Our machines are designed for 24/7 operation with minimal downtime. We provide:
  • 24/7 Customer Support
  • Fast Spare Part Replacement (within 48 hours)
  • On-site Training and Setup
  • Annual Maintenance Packages for Longevity
  • You can choose local after-sales engineers to provide services

  • HEAD customers in Perth
  • HEAD customers in Sydney
  • HEAD customers in Melbourne
  • HEAD customers in Brisbane
  • HEAD customers in Adelaide
  • HEAD customers in Sydney

How to control quality

Quality Control That Guarantees Performance

Production process
If you want to know the latest price
You can contact us directly
Inquiry
Verify Code
Frequently Asked Questions

Here you'll find answers to some of the most common questions we receive about our waterjet cutting machines. We've organized them into categories for your convenience, so you can quickly find the information you need.
If your specific question isn’t listed here, feel free to reach out to us using the form below or by chatting with us directly through our chatbot.



  • Can I see the machine before purchasing it?

    Yes, you can contact us, and we will provide you with detailed contact information and the local address of customers using the equipment in your region. You can visit these locations to see the machine in operation.

  • What is the maintenance schedule for a waterjet cutting machine?

    Regular maintenance is essential for ensuring optimal machine performance. Basic maintenance tasks include checking the water filtration system, replacing nozzles and abrasive components, and ensuring proper lubrication of moving parts. A maintenance schedule should be followed, typically consisting of weekly, monthly, and annual checks.

  • How do I choose the right waterjet cutting machine?

    Consider the following factors:

    • Material type and thickness: Choose higher pressure for harder materials.
    • Precision requirements: Opt for 5-axis systems for intricate designs.
    • Worktable size: Ensure it fits your workspace and project needs.
    • Budget: Select a model that aligns with your investment plan.

    Our team can guide you in selecting the most suitable machine.

  • How much does a complete waterjet system cost?

    If running a water jet machine is cheap, one of its most notable attributes. After considering everything, the cost of running a waterjet is only $14/hour.
    Then, once you add product material costs, hours, profit percentages, etc., you get the final price.
    If you need abrasives, you will need an additional price, which is usually between $0.20 and $0.35 per pound, up to $35.00/hour, depending on pump power and cutting time.
    In addition to the initial operating costs, waterjet cutting offers other cost-saving benefits such as low tangential forces from drawing to cutting, fast cutting speeds and fast settling times, often eliminating the need for fast transition times for clamping.

  • What kinds of materials can be cut with a waterjet?

    A waterjet can cut both hard & soft materials including, but not limited to titanium, stainless steel, aluminium, munitions, exotic alloys, composites, stone, marble, floor tile, glass, automotive headliners & door panels, gasket, foam, rubber, insulation, textile, food and many more.　Soft materials are cut with water only, while hard materials require a stream of water mixed with fine grains of abrasive garnet.

  • What is the cutting thickness of a water jet?

    The cutting thickness depends on the material and machine configuration:

    • Metals: Up to 150mm (6 inches)
    • Stone and glass: Typically 50-100mm (2-4 inches)
    • Flexible materials: Almost unlimited
As Head has a strong research and development, production sales and service team, Shenyang Head Science and Technology Co.,Ltd has become well-known enterprises in waterjet cutting machine manufacturer field.
