A New Paradigm in Automotive Weld Inspection: Robotic Waterjet Cutting with Multi-Axis Positioners

In the relentless pursuit of automotive safety and quality, the integrity of every weld is paramount. For automotive seats, which form the core of occupant safety systems, the metallographic analysis of weld points is a critical, non-negotiable quality control process. However, traditional methods for preparing weld samples have long been a bottleneck, plagued by inaccuracies and inefficiencies. This article explores a transformative new solution: the integration of robotic waterjet cutting with a multi-axis positioner, a combination that is setting a new standard for precision, speed, and accuracy in metallographic weld inspection.

The Challenge: Compromised Samples from Conventional Preparation Methods

Metallographic analysis is the microscopic examination of a material's structure. To accurately inspect a weld, a sample must be cut from the component, polished, and etched. The core challenge lies in the initial cutting phase. For decades, technicians have relied on manual methods like abrasive saws or milling machines.

While functional, these methods introduce significant, often unavoidable, problems:

• Thermal Damage: The friction and heat generated by conventional cutting tools can alter the microstructure of the metal at the edge of the sample. This "Heat-Affected Zone" (HAZ) is not part of the original weld and can mask defects or create misleading artifacts, leading to an inaccurate analysis of the weld's true quality.

• Mechanical Stress: The force exerted by saws and grinders can introduce mechanical stress, deformation, and smearing on the cut surface, further compromising the integrity of the sample.

• Lack of Precision and Repeatability: Manual cutting of complex geometries, such as the tubular frames of an automotive seat, is challenging. Achieving the precise angle and location required for a perfect cross-section is difficult and lacks the repeatability essential for consistent quality control.

• Time and Labor Intensive: The process is slow, requires skilled technicians, and involves multiple steps of clamping, cutting, and deburring, creating a significant bottleneck in the production workflow.

These limitations can lead to compromised data, potentially allowing substandard welds to pass inspection or causing perfectly good components to be rejected. In an industry where safety and efficiency are measured in microns and seconds, a better method is not just desirable—it's essential.

The Innovative Solution: A Synergy of Power and Precision

A groundbreaking approach has emerged, combining the power of ultra-high-pressure waterjet cutting with the agility of a robotic arm and the flexibility of a workpiece positioner. This integrated system automates the entire sample extraction process, delivering unparalleled precision and eliminating the core problems of traditional methods.

Let's break down the components of this advanced solution:

1. Robotic Arm Waterjet Cutting: The End of Thermal Damage

At the heart of this new method is abrasive waterjet cutting. This technology uses a hyper-pressurized stream of water (often exceeding 60,000 PSI) mixed with a fine abrasive garnet. The resulting beam erodes the material at a microscopic level rather than shearing or melting it.

For metallographic preparation, the benefits are profound:

• No Heat-Affected Zone (HAZ): Waterjet cutting is a cold-cutting process. It imparts no thermal energy into the workpiece, ensuring that the microstructure of the weld sample remains in its original, unaltered state. The analysis you perform is of the weld itself, not of the damage caused by the cutting process.

• Superior Cut Quality: The process produces a smooth, satin-like finish with minimal burring, reducing the need for extensive post-processing and grinding before polishing can begin.

• Unmatched Precision: A robotic arm can guide the waterjet nozzle with exceptional accuracy and repeatability, executing complex cutting paths flawlessly every time.

2. The Positioner: Achieving Perfect Multi-Angle Machining

Automotive seat frames are complex assemblies with welds located at numerous angles and orientations. To access these points for a perfect cross-sectional cut, the component must be precisely positioned. This is where the变位机 (workpiece positioner) comes into play.

The positioner acts as a sophisticated, multi-axis clamping system. It securely holds the entire seat frame and can tilt, rotate, and orient it in coordination with the robotic arm's movements. This synergy allows the system to:

• Access Any Weld Point: No matter how awkward the angle, the positioner can present the weld to the cutting nozzle at the optimal orientation.

• Ensure Perpendicular Cuts: For accurate analysis, the cut must be perfectly perpendicular to the weld bead. The robot and positioner work in tandem to achieve this with digital precision.

• Process Multiple Samples Efficiently: A single program can guide the system to cut samples from dozens of different weld points on the same frame in one continuous, automated cycle.

Case Analysis: The New Workflow in Action

To understand the practical impact, consider the streamlined workflow for inspecting an automotive seat frame using this system:

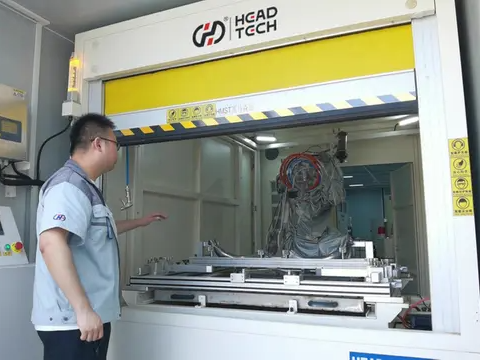

1. Mounting: An operator secures the entire automotive seat frame onto the fixtures of the positioner.

2. Programming: The system is programmed with the precise 3D coordinates of each target weld and the required cutting path. This is often done using the component's original CAD data for maximum accuracy.

3. Automated Execution: The cycle begins. The positioner rotates the frame to the first weld point. The 6-axis robotic arm articulates the waterjet nozzle to the exact starting point and begins the cut.

4. Multi-Angle Repositioning: Once the first cut is complete, the positioner seamlessly re-orients the frame to present the next weld point. The robot cuts again. This process repeats until all required samples have been extracted.

5. Sample Collection: The precisely cut samples fall away, free of thermal damage and mechanical stress, ready for immediate mounting, polishing, and analysis.

The Tangible Benefits: A Leap Forward for Automotive Quality

Adopting this integrated robotic solution delivers significant, measurable advantages that address the core failures of older methods:

• Unquestionable Accuracy: By providing metallurgists with a pristine, unaltered sample, the system ensures that analysis reflects the true weld quality. This builds a foundation of trust in the quality control data.

• Drastic Increase in Efficiency: What once took hours of manual labor can now be completed in minutes. The automated process runs continuously, dramatically increasing throughput and freeing up skilled technicians for higher-value tasks like data analysis.

• Enhanced Safety: Automation removes the operator from the immediate cutting area, eliminating exposure to the physical hazards of cutting machines and heavy components.

• Cost-Effectiveness: While the initial investment is significant, the ROI is compelling. Savings are realized through increased speed, drastically reduced labor costs per sample, elimination of sample rejection due to preparation error, and the long-term benefits of more reliable quality data.




In conclusion, the combination of robotic waterjet cutting and multi-axis positioners is more than just an improvement—it is a fundamental shift in how metallographic inspection is performed. By prioritizing sample integrity and leveraging intelligent automation, this solution provides automotive manufacturers with a faster, safer, and infinitely more reliable method for guaranteeing the quality of their most critical components. It is a vital step forward in building the safer, more reliable vehicles of the future.
