HEAD NEW Designed Waterjet Cutting Machine Pump

5 0 Reviews
HEAD 420MPa exchange hydraulic booster 37Kw high pressure pump

PDF Export

  • HEAD420EHI37Z

  • HEAD

  • HS code: 84565000

HEAD 420MPa exchange hydraulic booster 37Kw high pressure pump

HEAD design HEAD420EHI37Z(panda) with simple aim: To help you succeed in cutting Industry

HEAD420EHI37Z, why is EHI, because EHI is the abbreviation of Exchange hydraulic intensifier, meaning exchange hydraulic booster, which means that the two superchargers can be exchanged. Therefore, the full meaning of the equipment model is HEAD 420MPa exchange hydraulic booster 37Kw high pressure pump.

Dimensions(length x width x height) 1770mmx1100mmx1280mm
weight 1200Kg
Highest pressure 420MPa
Continuous work pressure 370-390MPa
Boost ratio 20:1
Maximum displacement 3.7L/min
 power supply 380V AC50Hz
Maximum displacement of oil pump 100L/min

Structure introduction

  •  Equipped with a 2.2L accumulator with safety cover can get a very smooth water jet, cutting efficiency increase 10%, hydraulic system (waterjet system) has a longer service life.

  • All-steel welding frame, service life is 100 years

  • Double-core intensifier, high-pressure pipeline equipped with German MAXIMTOR high-pressure shut-off valve to accurately control the water flow.

  • This pump is designed for safe, reliable, continuous operation at 60,000 psi [4,150 bar] in tough industrial cutting applications

  • Provide the most advanced and powerful ultra high pressure system

  • Using HEAD420EHI37Z will minimize downtime and increase 10~20% production efficiency

  • HEAD420EHI37Z is reliable and easy to maintain and operate. Easy to cut and trim large amount materials, including heat sensitive, fragile and tough materials. HEAD420EHI37Z is ideal for robotic arms (or portable water cutting)
  •  Industrial touch LCD screen (8 inches), real-time display of equipment operating status.  Problem handling is simplified, no need to use experience to judge

The frame structure is made of square tube 60x60x5 frame welded structure, which is more firm. Transportation is safer and more convenient. Secondly, the fuel tank adds a ball valve for easy maintenance and disassembly. This is mainly to facilitate the maintenance of the variable pump, and without the need to drain the tank oil, the ball valve can be directly closed to repair the variable pump. Finally, the electric control cabinet has built-in instructions for the book placement rack, which is convenient for customers to find.

waterjet cutting machine

A remarkable advantage of HEAD420EHI37Z that it equips one spare intensifier. These two intensifiers are able to work alternately, which makes the machine can run 24h*7d. It is because if one of these two intensifiers broken down, the machine can use the other intensifiers quickly without any wasting time on waiting for stopping to repair the pump. It increases the working efficiency and achieves the non-stop operation goal

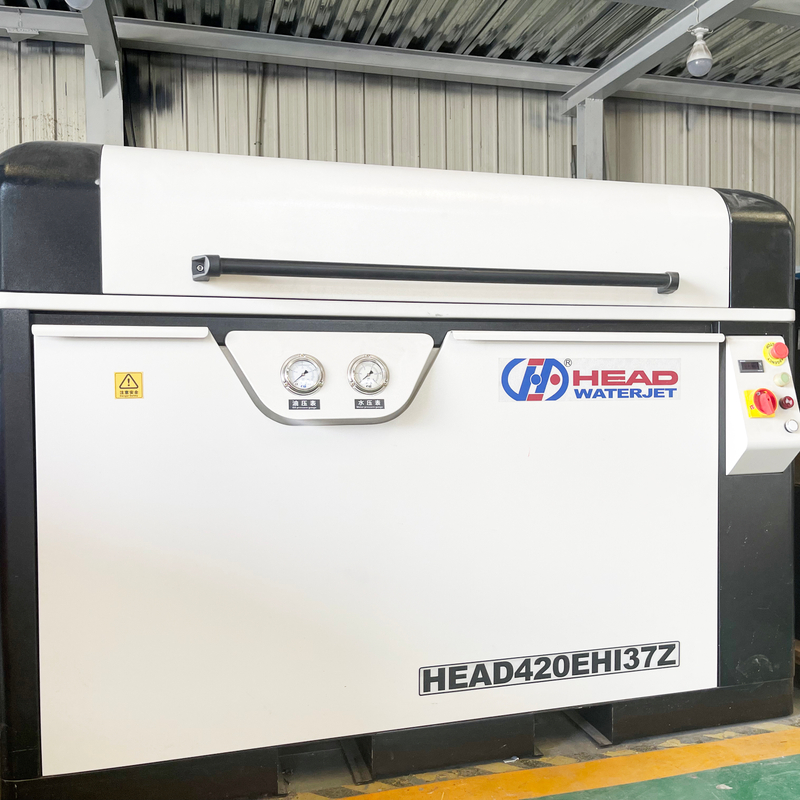

waterjet cutting machine waterjet pump one

waterjet cutting machine


>>>Brief Introduction Of HEAD waterjet company

HEAD water jet is an independent technology research and development, high-tech, promote high-quality, high credibility of the focus on large-scale ultra-high pressure water cutting machine manufacturer. Has been engaged in water jet cutting research, manufacturing, is one of the most professional water jet manufacturers in the stone parquet, glass parquet, metal shaped cutting, aerospace, military and other fields of research and manufacturing. We are a manufacturing and trading combo for water jet cutting machine in Liaoning China, with more than 15 years full experience and a professional sales team.HEAD water jet, so cutting is no longer a problem!

Quality and credit goes all the way. HEAD , a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.

factory (1) (1)

>>>Try to Read This -------Our Service

1. Maintenance free of charge for 12 months .
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.


Our Package Advantage:
1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
   Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.


package (3)

As Head has a strong research and development, production sales and service team, Shenyang Head Science and Technology Co.,Ltd has become well-known enterprises in waterjet cutting machine manufacturer field.
