"One-Touch Activation" for Intelligent Slicing! Unveiling The Full-Process Waterjet Cutting Production Line for Seat Frame Weld Points

Introduction

In the demanding world of automotive manufacturing, the integrity of components is paramount, especially for critical safety features like seat frames. Ensuring the strength and quality of every weld point is non-negotiable. Traditional methods of weld inspection can be time-consuming and labor-intensive, often involving hazardous manual cutting. This article will unveil a revolutionary "one-touch activation" intelligent slicing solution: a full-process waterjet cutting production line specifically designed for the precise preparation of seat frame weld points, optimizing quality control, enhancing safety, and streamlining production.

The Criticality of Seat Frame Weld Point Inspection

Automotive seat frames are complex structures composed of numerous welded joints. Each weld must meet stringent quality standards to ensure occupant safety during collisions and throughout the vehicle's lifespan. Comprehensive inspection of these weld points is crucial, often requiring destructive testing or precise material removal to expose the weld for detailed analysis. The challenge lies in performing these operations quickly, accurately, and efficiently on a high-volume production line.

Traditional Challenges in Weld Point Preparation

Historically, preparing weld points for inspection has presented several challenges:

• Manual Processes: Relying on tools like angle grinders for weld point removal is labor-intensive, inconsistent, and can potentially damage surrounding material. This approach also introduces significant safety risks to operators.

• Time-Consuming: Manual preparation is inherently slow, creating bottlenecks in the inspection process and hindering overall production throughput.

• Safety Concerns: Traditional cutting methods generate sparks, dust, heat, and significant noise, posing occupational hazards and increasing the risk of accidents.

• Lack of Precision: Achieving precise, repeatable cuts for consistent inspection is difficult with manual techniques, impacting the reliability of metallurgical analysis.

Introducing the "One-Touch Activation" Waterjet Cutting Production Line

This innovative solution integrates advanced robotics, precise waterjet technology, and intelligent automation to create a seamless, highly efficient production line for preparing seat frame weld points for inspection. The "one-touch activation" concept signifies the simplified user interface and automated workflow that minimizes human intervention and maximizes productivity, making it an ideal choice for automotive manufacturing.

Key Components and Workflow:

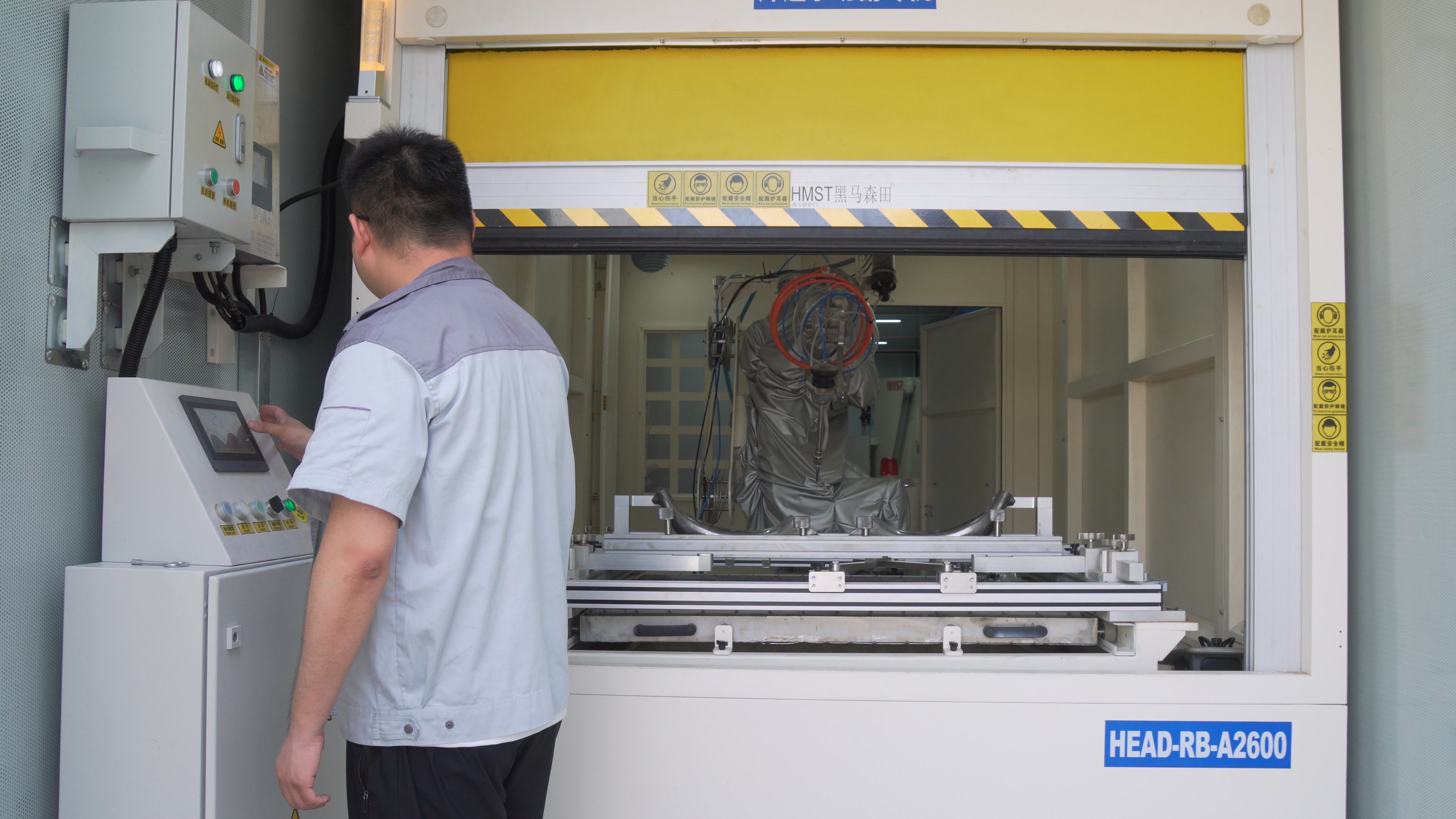

1. Enclosed Protective Workstation: The entire waterjet cutting area, including the robotic arm and positioner, is housed within a fully enclosed protective workstation. This critical design feature:

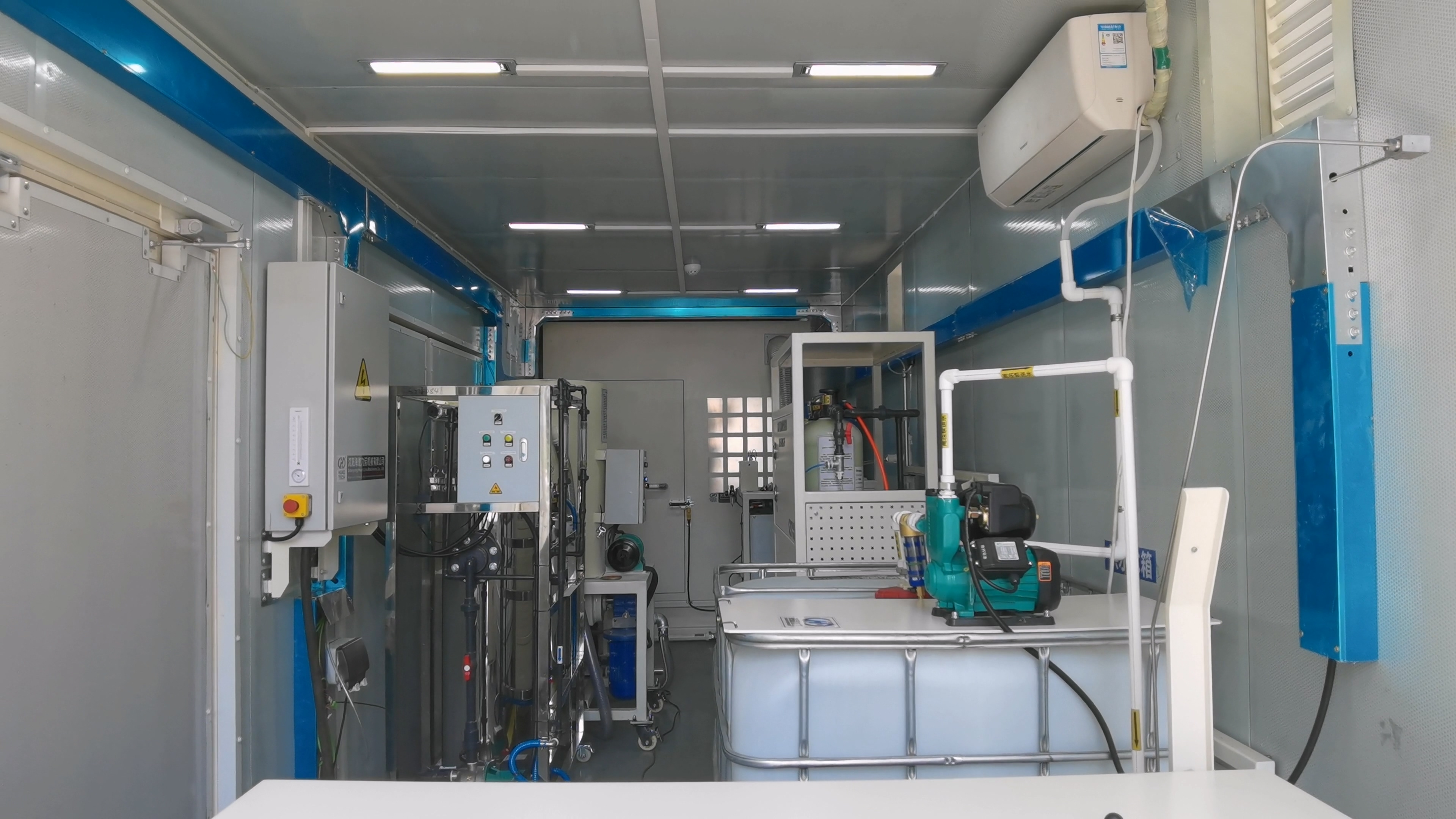

• Effectively isolates noise: The workstation, along with the pump, abrasive supply, abrasive removal system, and water tank, are installed inside a sound-insulated room, significantly reducing operational noise levels and improving the working environment.

• Enhances safety: Contains water spray and abrasive particles, improving overall operator safety and maintaining a clean work area.

2. Automated Part Identification & Program Selection:

• Operators manually load the seat frame into the workstation.

• They then use a barcode scanner to read the workpiece's unique identifier. This action automatically retrieves and selects the corresponding pre-programmed cutting program from the system's database. This is the "one-touch" aspect – once identified, the system knows exactly what to do.

3. Robotic Waterjet Cutting with Positioner:

• Precision Slicing: A multi-axis robotic arm, equipped with a high-pressure waterjet nozzle, precisely cuts or "slices" the seat frame at designated weld points. This creates clean, accurate cross-sections or exposes specific areas for visual or metallurgical inspection.

• Coordinated Movement: The robotic arm works in conjunction with an integrated positioner (or turner). The positioner manipulates and orientates the seat frame, presenting the weld points at the optimal angle for the waterjet nozzle. This synergy ensures comprehensive access and cutting efficiency for complex seat frame geometries.

• Cold Cutting Advantage: Waterjet cutting is a cold process, preventing heat-affected zones (HAZ) and material deformation that could compromise the integrity of the weld or distort inspection results.

• Automated Operation: Once the program is selected, the robotic arm autonomously executes the pre-taught cutting trajectory for the weld points. This allows for automated operation from material placement to cutting, requiring no manual intervention during the cutting process itself.

4. Abrasive Removal and Water Management Systems:

• Continuous Operation: Advanced abrasive removal systems continuously clear spent garnet and debris from the catcher tank, preventing buildup and ensuring uninterrupted operation.

• Sustainability: Integrated water tanks and recycling systems minimize water consumption, contributing to a more environmentally responsible manufacturing process.

5. Automated Part Unloading & Transfer to Inspection:

• Upon completion of the waterjet cutting process, the operator manually unloads the prepared seat frame or the precisely cut weld point samples. These are then transferred to the next stage of quality control for further inspection (e.g., visual inspection, metallurgical analysis, or automated non-destructive testing).

The Unmatched Advantages of Waterjet Cutting for Weld Points

This integrated waterjet cutting line offers significant advantages over traditional methods:

1. Enhanced Safety and Efficiency: It replaces the manual, hazardous task of using angle grinders for weld point removal. This drastically improves operator safety, reduces safety hazards, and boosts cutting efficiency. The resulting cut quality is also superior to conventional methods.

2. Rapid Processing Time: The system significantly reduces the time required for weld point preparation. Currently, processing a single weld point takes less than 1 minute to cut, with material placement requiring approximately 3 minutes. This translates to substantial time savings for high-volume production.

3. Automated and Seamless Operation: The cutting trajectories are pre-programmed. After manual material placement, the operator simply scans the barcode to select the program and presses the start button. The system then automatically runs the cutting process without further manual intervention, achieving a truly automated run from loading to cutting.

Conclusion

The "one-touch activation" intelligent slicing waterjet cutting production line represents a significant leap forward in quality assurance for automotive seat frames. By automating the precise preparation of weld points, it addresses long-standing challenges of efficiency, accuracy, and safety in manufacturing. This full-process solution, featuring an enclosed protective workstation, robotic arm, positioner, and advanced support systems, not only streamlines the production line but also elevates the standard of weld inspection, ultimately contributing to safer, higher-quality vehicles and setting a new benchmark for smart manufacturing in the automotive industry.
