The Silent Revolution: How Enclosed Robotic Waterjet Stations Deliver Flawless, Noise-Free Weld Sectioning

A revolution is quietly transforming the factory floor in the automotive sector. The traditionally loud and hazardous process of preparing weld samples for inspection is being silenced. The solution is the fully enclosed, robotic waterjet cutting work station—a system that not only delivers metallurgically perfect, damage-free samples from automotive seat frames but also creates a safer, quieter, and more productive work environment. This is more than an upgrade; it's a silent revolution in quality control.

The Dual Challenge in Weld Inspection: Sample Damage and Workplace Hazards

For decades, the process of sectioning automotive seat frame welds for metallographic analysis has presented two fundamental problems. The first, as widely understood, is the risk of damaging the sample itself. Traditional cutting methods, from abrasive saws to even high-precision Wire EDM, introduce heat and mechanical stress, altering the very microstructure that needs to be analyzed. This can compromise the integrity of the quality control process.

The second, and equally important, challenge is the impact on the workplace environment. Open-plan cutting stations create significant occupational hazards:

• Noise Pollution: Abrasive waterjet cutting, while effective, is an inherently loud process. The noise from the high-pressure stream can easily exceed 85 dBA, requiring mandatory hearing protection and contributing to overall factory noise pollution.

• Safety Risks: An open robotic system presents potential safety hazards from high-pressure water lines and fast-moving machinery. Containing the process is crucial for mitigating risk to personnel.

• Aerosolized Particles: The cutting process can create a mist of water and fine abrasive particles. Proper containment and ventilation are necessary to maintain air quality.

Solving only the sample integrity problem is an incomplete solution. The truly modern factory demands a process that is not only precise but also safe, clean, and quiet.

The Solution: The Fully Enclosed Robotic Waterjet Work Station

The "silent revolution" is spearheaded by the development of fully integrated, enclosed robotic waterjet work stations. These self-contained cells are engineered to address both sample integrity and workplace safety in one elegant solution. They combine the unparalleled "zero thermal damage" cutting of a waterjet with the precision of a robotic arm, all housed within a sound-dampening, protective enclosure.

What Makes the Enclosed Work Station Revolutionary?

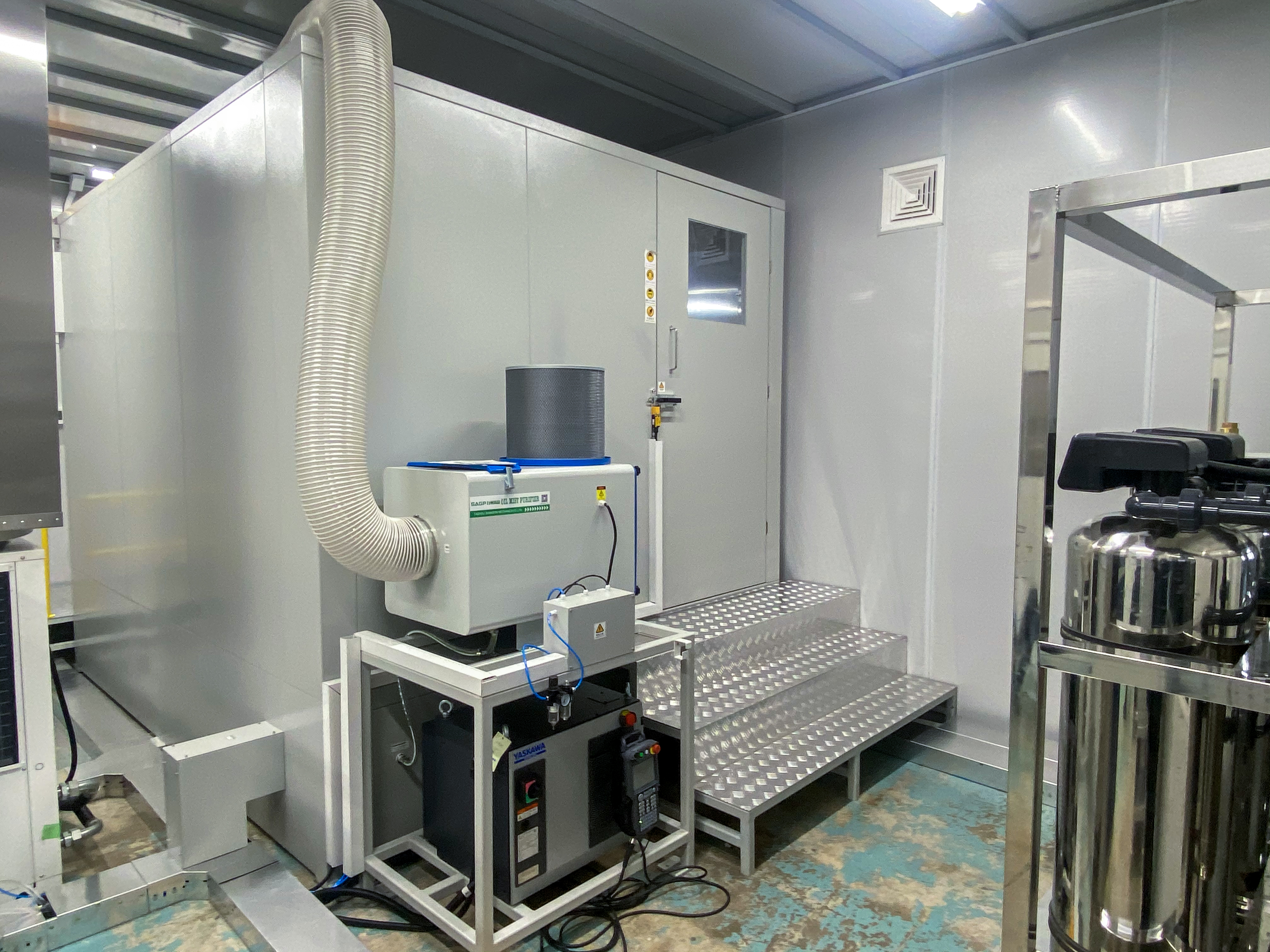

1. Acoustic Enclosure for a Silent Footprint: The entire work station is encased in a robust, sound-abating enclosure. These enclosures are specifically designed to absorb and block the high-frequency noise of the waterjet. This dramatically reduces the noise level in the surrounding environment to well below occupational hazard thresholds, often making the powerful cutting process nearly silent from the outside. This eliminates the need for hearing protection zones around the machine and contributes to a less stressful, more focused workplace.

2. Zero Thermal Damage Sectioning: Inside the cell, the core process remains the same proven method: a robotic arm guides a waterjet nozzle to perform flawless, cold cuts on the automotive seat frame's weld points. The term "non-destructive sectioning" is used here to highlight that the process, while physically cutting the part (which is technically destructive testing), is non-destructive to the metallurgical properties of the sample. The microstructure remains pristine and unaltered by heat or stress.

3. Comprehensive Safety Integration: The enclosure acts as the primary safety barrier. Interlocked doors ensure the system cannot operate while personnel have access, and reinforced windows allow for safe observation. Integrated mist collection and water recycling systems manage the environmental impact, creating a clean and self-contained operation.

The Workflow: A Quietly Efficient Process

The operation of an enclosed work station is a model of modern automation:

1. Loading: The automotive seat frame is loaded into the cell via a secure access point, often automated with a conveyor or rotary table.

2. Sealing: The interlocked doors close, the enclosure is sealed, and the work station becomes a quiet, isolated environment.

3. Execution: The robot and positioner articulate the frame, performing dozens of precise, pre-programmed cuts. Outside the cell, the only sign of the powerful forces at work might be a gentle hum.

4. Unloading: Once the cycle is complete, the system purges any remaining mist, and the doors unlock, presenting perfectly sectioned samples ready for the lab.

The Overarching Benefits of the Silent Revolution

The adoption of enclosed robotic waterjet stations provides a multi-layered return on investment that redefines factory efficiency and employee well-being.

• Enhanced Sample Quality: Guarantees metallurgically perfect samples for the most accurate analysis possible.

• Massive Noise Reduction: Fosters a healthier and more productive work environment and simplifies compliance with occupational health and safety regulations.

• Maximum Operator Safety: Isolates workers from high-pressure systems, moving machinery, and airborne particulates.

• Increased Automation and Throughput: Runs continuously with minimal human intervention, allowing quality control to keep pace with high-volume production.

In conclusion, the fully enclosed robotic waterjet work station is the definitive answer to the challenges of modern weld inspection. It is the culmination of advancements in robotics, material science, and workplace safety engineering. By silencing the process and perfecting the result, this technology is not just improving a single step in quality control—it's leading a silent revolution that makes our factories smarter, safer, and more efficient than ever before.
