Waterjet Hydrofinish

Advanced Waterjet Surface Finishing Technology

Waterjet Hydrofinish is an advanced surface-processing solution designed for stone, engineered materials and architectural surfaces. Integrated with a CNC waterjet cutting system, it uses a controlled high-pressure waterjet to create linear, brushed, grooved and decorative textures directly on the material surface.

The system combines precision cutting and surface finishing in one machine, helping manufacturers reduce material handling, simplify production and create high-value decorative products.

How Waterjet Hydrofinish Technology Works

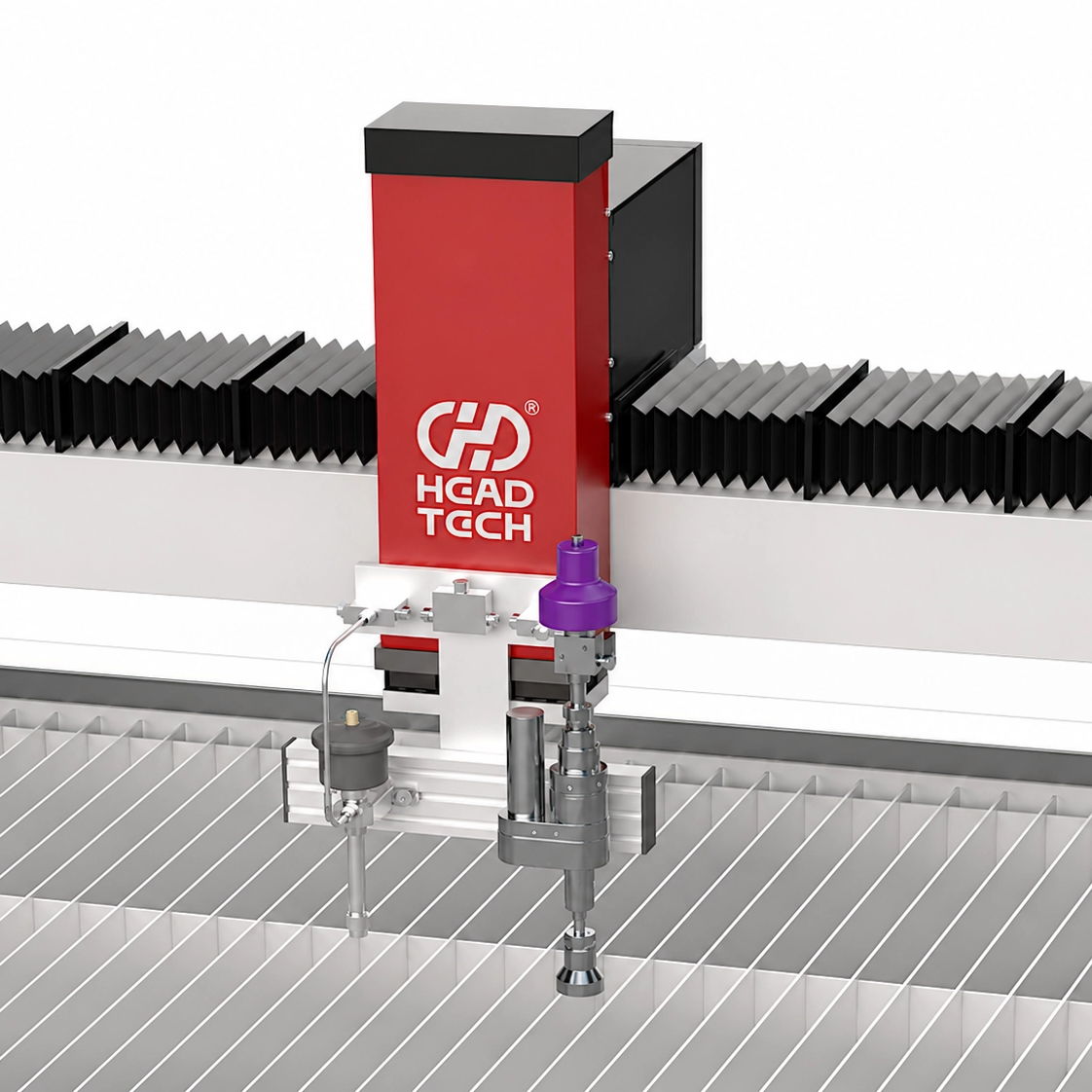

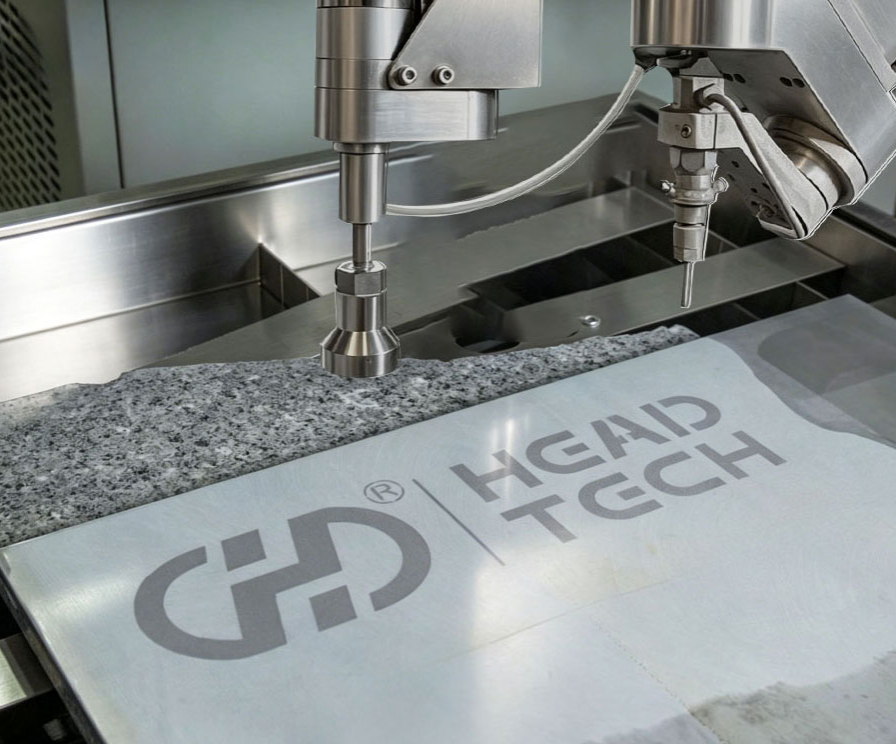

Unlike conventional waterjet cutting, which concentrates water pressure into a narrow cutting stream, Waterjet Hydrofinish distributes the waterjet through a rotating multi-nozzle head to process a wider surface area.

A high-pressure servo pump supplies water to the rotating head. The rotational speed, water pressure, stand-off distance and tool path are controlled through the CNC and PLC systems. As the nozzles move across the workpiece, the high-speed waterjets remove a controlled amount of surface material through accelerated erosion.

By adjusting the processing parameters, manufacturers can control:

• Texture depth

• Line width and spacing

• Surface roughness

• Pattern direction

• Visual consistency

• Final decorative effect

Because the process is computer-controlled, complex patterns can be reproduced with consistent depth and clearly defined details.

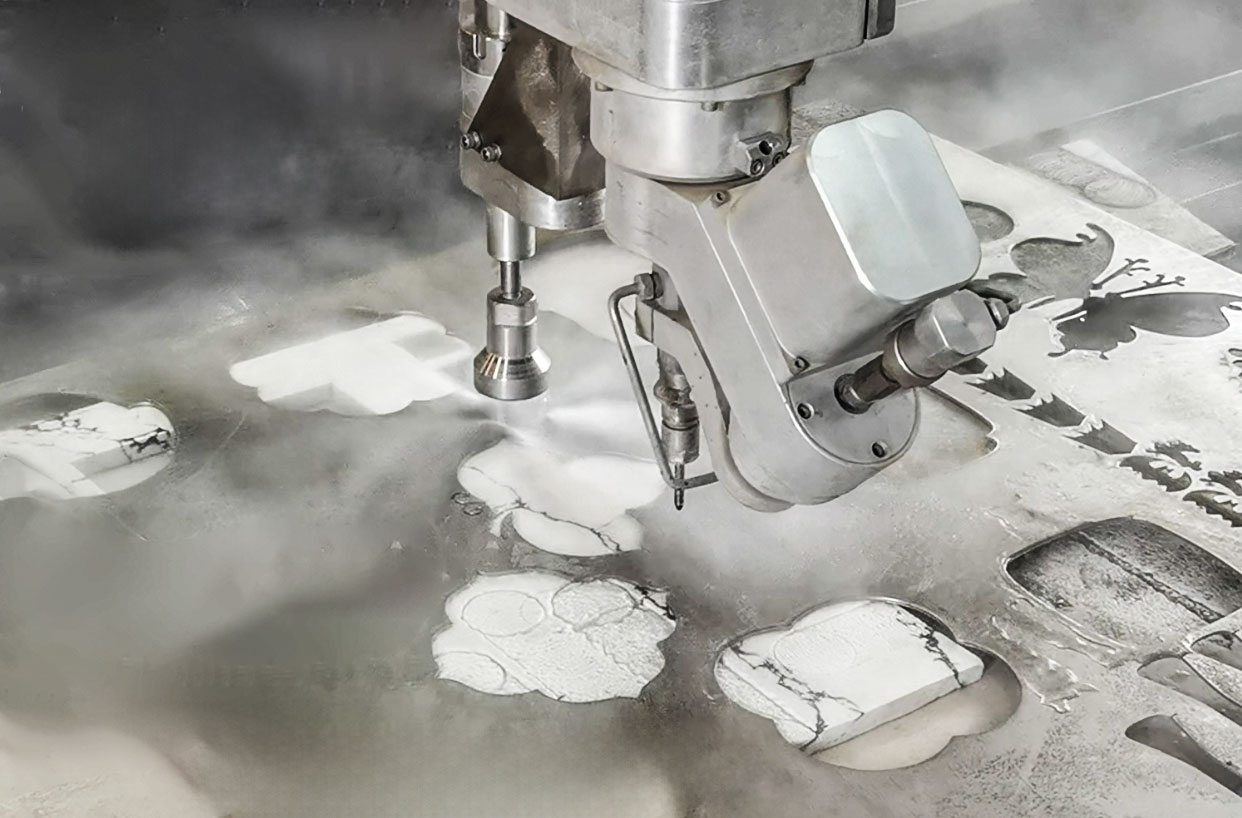

From Precision Cutting to Decorative Finishing

Waterjet Hydrofinish expands the capabilities of a standard waterjet cutting machine. The same system can be used for both precision cutting and decorative surface finishing.

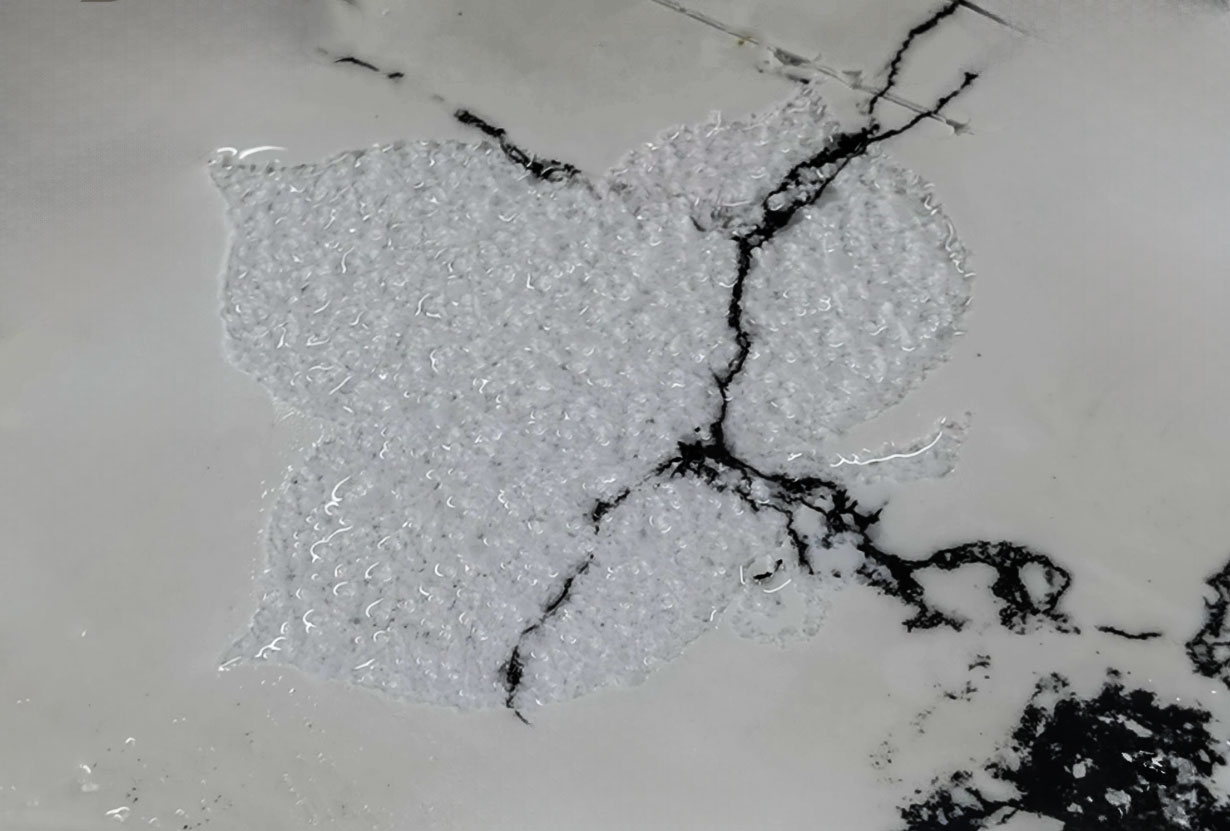

With a five-axis CNC configuration, the machine can follow complex paths and create a wide range of surface effects, including:

• Linear brushed finishes

• Grooved textures

• Combed finishes

• Bamboo-inspired textures

• Roughened surfaces

• Custom decorative patterns

• Artistic wall and floor designs

Interchangeable templates and programmable toolpaths make it easy to produce different textures and customized patterns.

Technical Overview

• Product name: Waterjet Hydrofinish

• Model: HEAD-LW300-1600

• Operating pressure: 200–320 MPa

• Maximum nozzle rotation speed: 1,200–1,600 rpm

• Typical finishing width: Approximately 50 mm

• Control system: CNC and PLC control

• Compatible configuration: Five-axis waterjet system

• Optional functions: Laser height sensing, real-time height control, collision protection and vision assistance

Actual processing parameters and results depend on material type, hardness, thickness, stand-off distance and the required texture.

A Smarter Way to Create Decorative Surfaces

Waterjet Hydrofinish brings cutting, texturing and decorative finishing together in one intelligent production system. It enables stone processors, architectural contractors and surface manufacturers to produce customized, high-value products with greater flexibility and fewer production steps.
