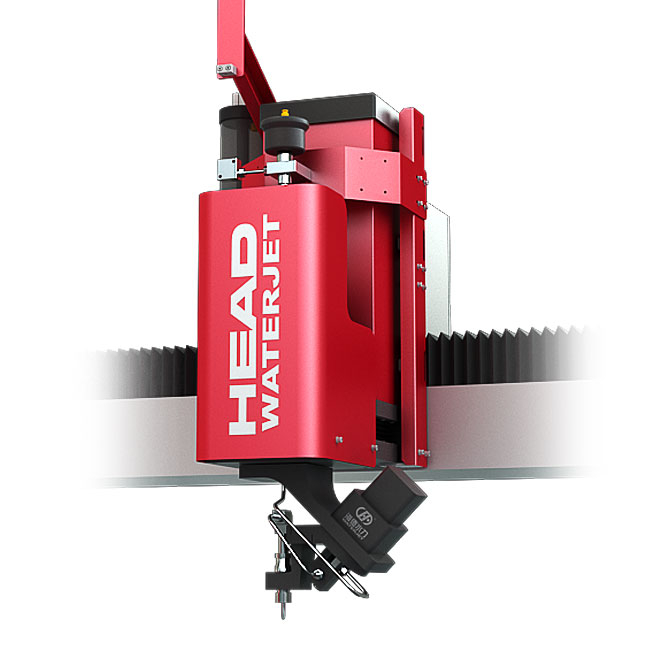

3D 5-AXIS CUTTING HEAD

The 3D cutter head has five axes, 3 linear and 2 rotating. It has been designed for both pure 3D cut and 2D 1/2 cut (flat cut with bevel), without losing 2D (flat) cut functionality. Its design features offer great work possibilities. Especially its infinite rotation in the C axis, which avoids the need to rewind with a consequent reduction in working times and a lower risk of reducing the cut quality. On the rotating frame of the C-axis, it is possible to connect the height adjustment and anti-collision control module., IP67 water/dust proof, present high accuracy and durable last longer performance.

waterjet cutting machine


waterjet cutting machine



Mounting Dimension

5ac cutting head

Specification parameters

ItemSpecification
Name
AC type of five-axis waterjet cutting head
Dimensions386×222×698mm
Rotating radius266mm
A-axis rotating angle±70°/16°~-196°
C-axis rotating angleUnlimited (or ±540°)
Cutting precision at fixed point±0.05mm
Weight29kg




Application

5 Axis Waterjet Cutting Benefits:

High rigidity of mechanism, and tiny thermal deformation.

• Excellent cutting effect: no dots are left at corners during processing sharp angles of irregular shapes or successive sharp angles.

• High machining efficiency: C-axis can rotate unlimitedly and fast, improving machining efficiency.

• Three-dimensional cutting: With 3D cutting function, it is used to mosaic cutting on cylindrical and curved parts.

• Wide machining range: It can achieve cylindrical parquet, large chamfer, machining of automobile parts, metal machining, non-metal composite material cutting.
