HEAD4020BA-5AC
HEAD
HS code: 84565000
Product Details

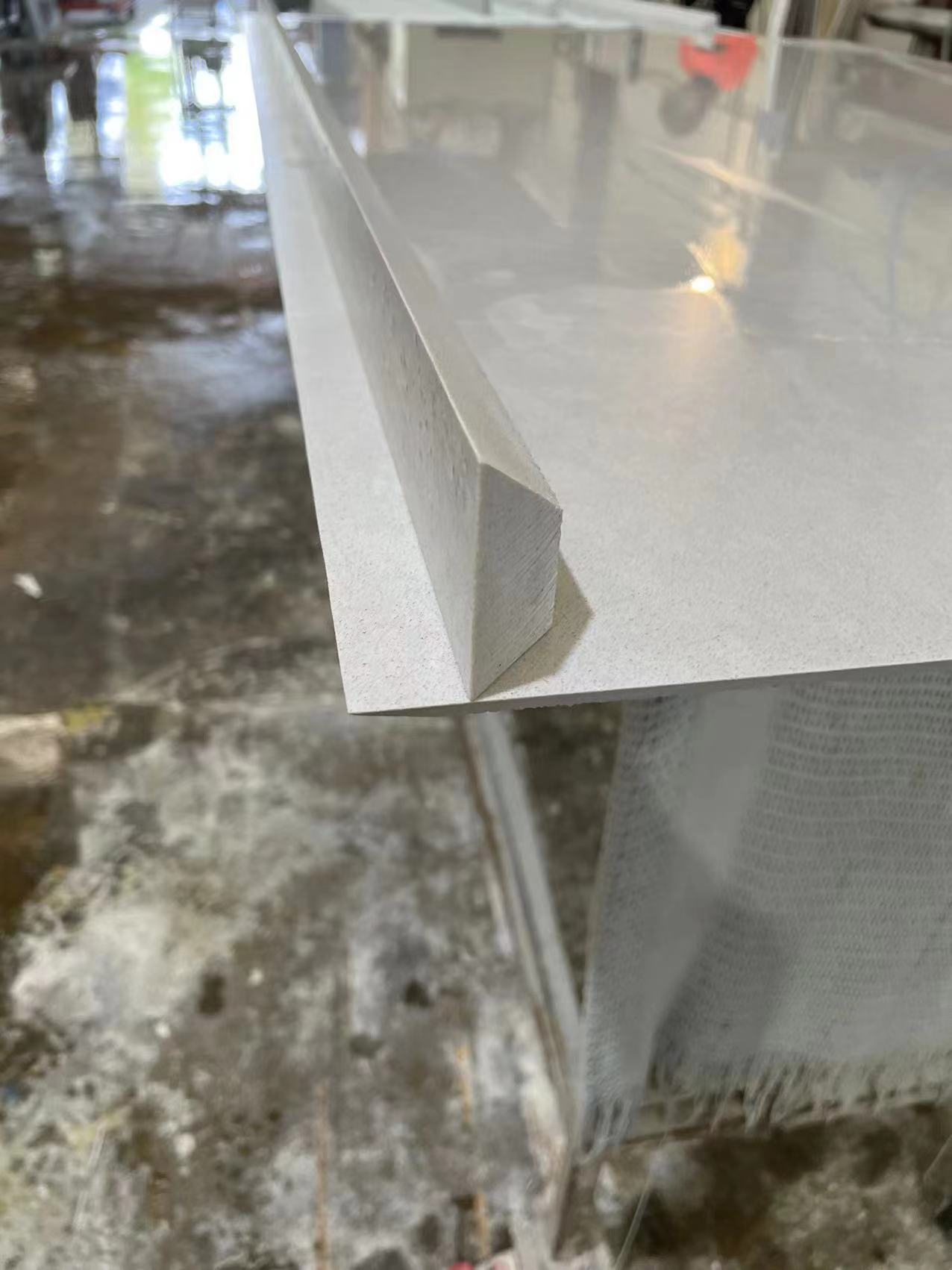

HEAD Waterjet's stone specialised machine adopts advanced waterjet cutting technology, which can achieve a 45-degree bevel cut and seamless splicing, making the Sintered Stone Ceramic Slab countertops more beautiful and sturdy. In addition, waterjet cutting reduces material waste and increases productivity. Therefore, when choosing kitchen countertops, you can consider choosing waterjet cut sintered stone ceramic slabs for better results.

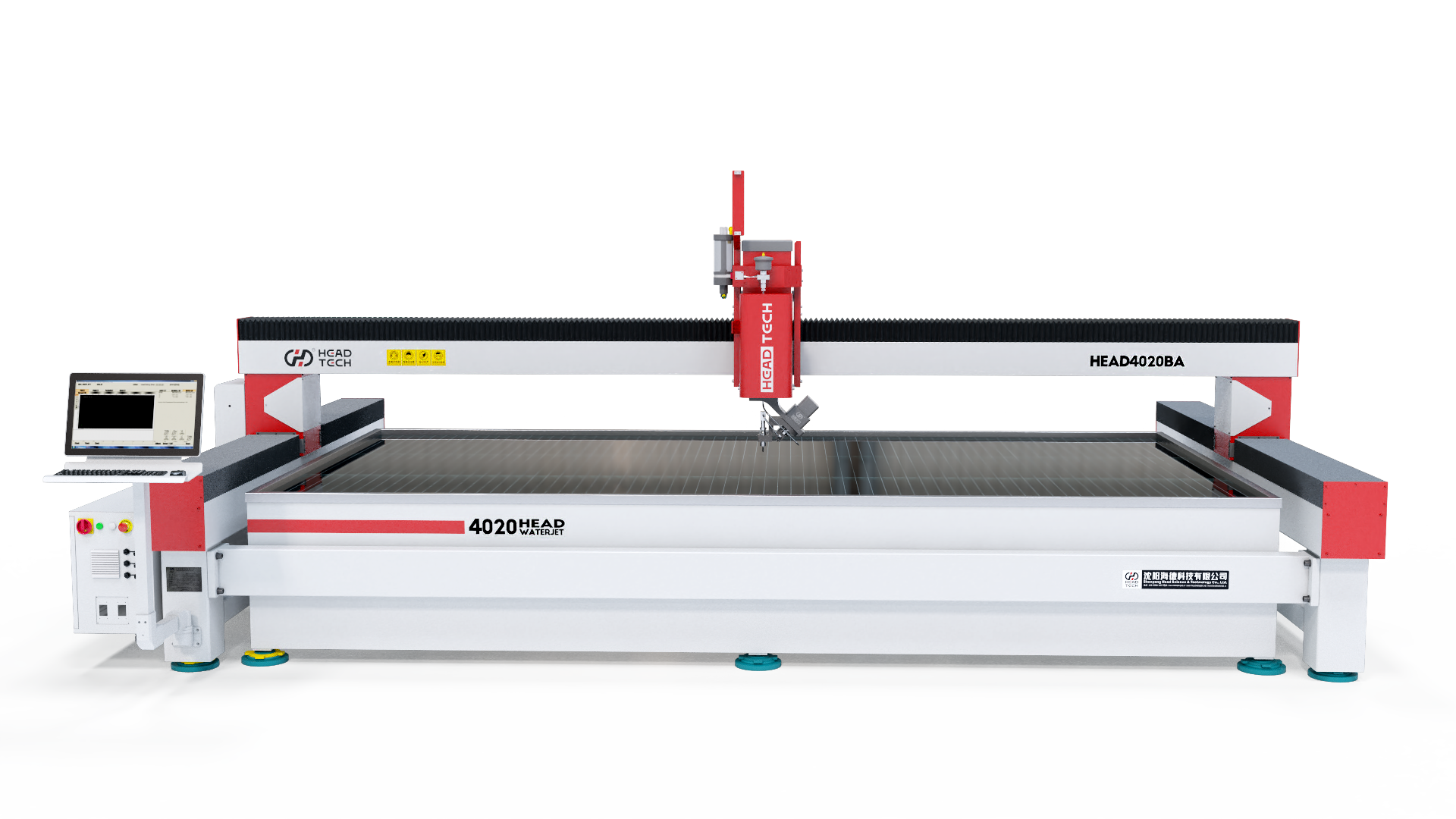

HEAD4020BA CNC ultra-high pressure water cutting machine is a high-performance gantry type large-stroke CNC ultra-high pressure water cutting machine, which has good stability and adaptability. Its unique gantry structure is especially suitable for cutting metal plates. All parts of the equipment are designed and manufactured in line with international standards. Each equipment has undergone 130 quality inspections, and the product performance is stable. 130 quality inspections and 72-hour durability tests before leaving the factory ensure the stable performance of the cutting machine, and the service life of key components can reach 100,000 hours.

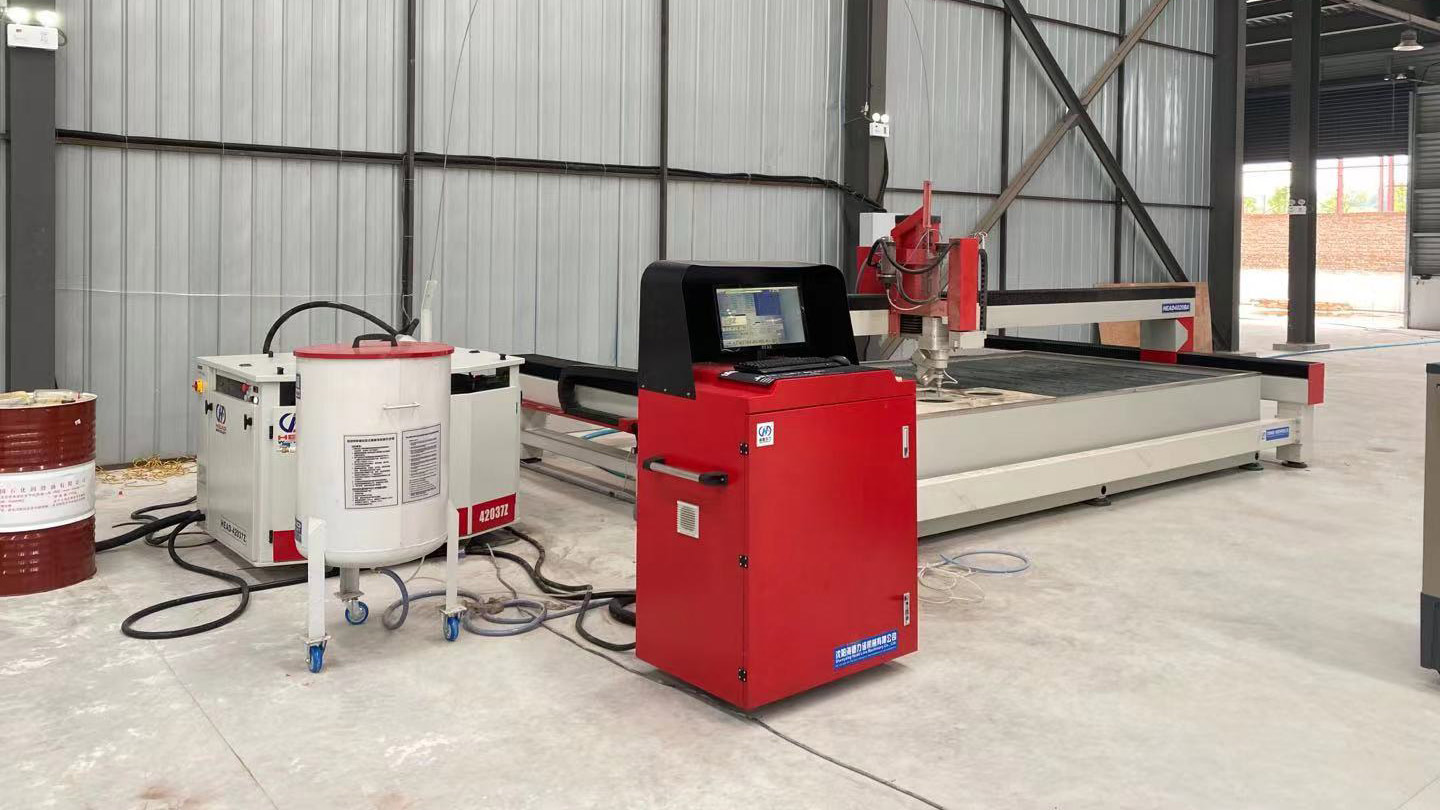

The complete set of waterjet equipment includes：HEAD4020BA CNC cutting platform, CNC system, high pressure pump, cutting head system（Optional 5AB/5AC 5axis cutting head） HEAD auto abrasive feeder system.
1. intensifier pump: Omron/Siemens PLC, Siemens motor, Japan Yuken directional valve, USA intensifier to ensure pump high quality.
2. Cutting table: Panasonic servo motor. Hiwin linear guide, ABBA ball screw, auto lubrication system, Z axis double linear(Most are single linear guide, it is easy to deform for a long time using) and Y axis welding metal+concrete structure cutting table(Most is just welding metal) to improve stabled performance and accuracy. X beam is one-time extrusion forming aluminium alloy,light and high rigid.
3. CNC controller; Software from Weihong the best and professional brand, schneider electric part etc.
4. For abrasive feeder, top and bottom air supply to ensure sand supply stability to ensure cutting quality.
5. We supply soften water system for you to improve intensifier pump and spare parts using life.

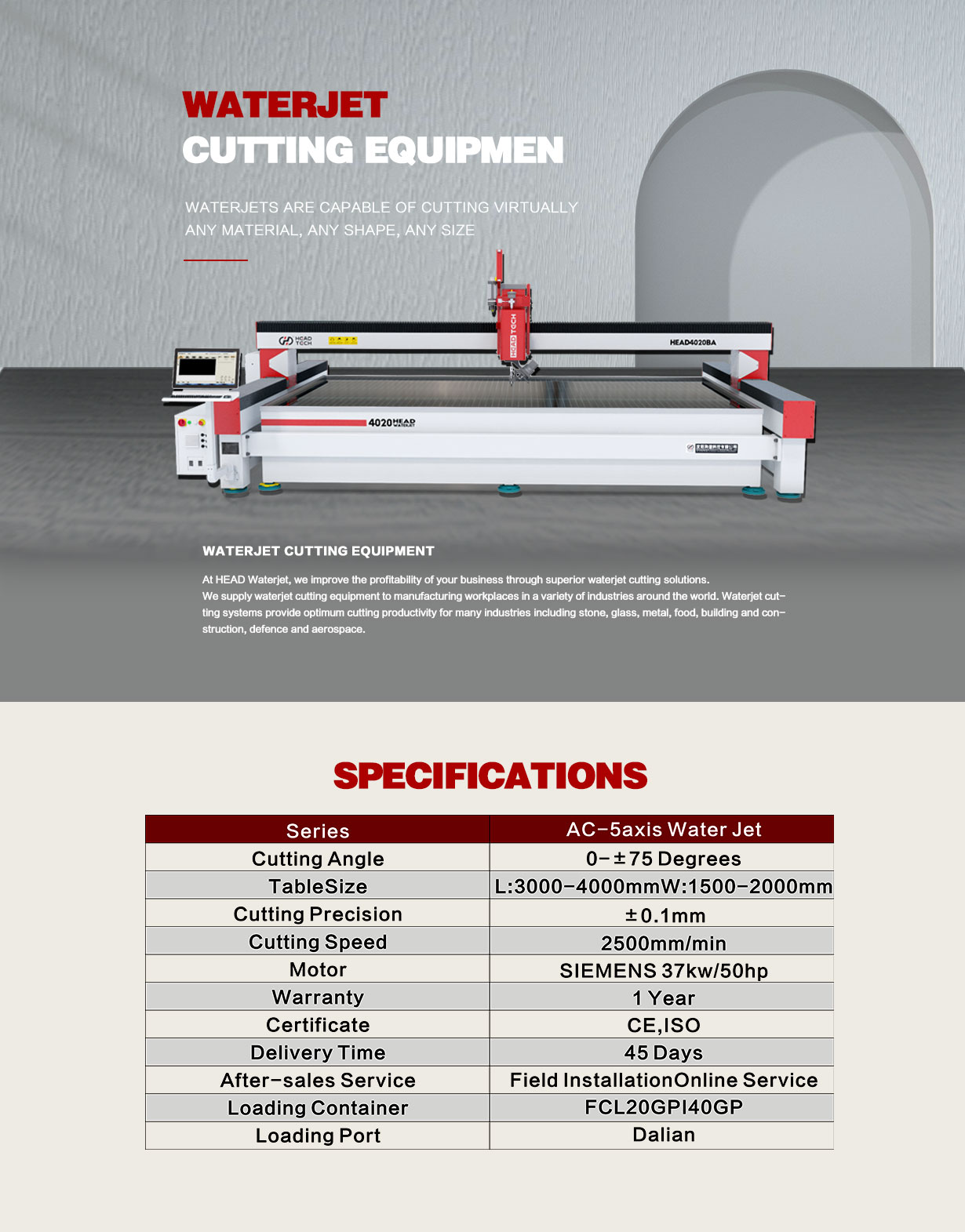

Model | HEAD4020BA |
Working area | 4000*2000mm |
Max running speed | 15m/min |
X/Y positioning accuracy | 0.05mm/min |
X/Y repeating positioning accuracy | ±0.02mm/min |
Max beveling degree (A-axis) | ±45° |
Max rotary degree(C-axis) | ±720° |
Angel accuracy | 0.01° |
Power | 220/380/400/415/480V-50/60HZ-3PH |
Applicable cutting material | Sincered stone, Marbel, Ceramic Mild steel, stainless steel, aluminium, brass, copper |
Warranty | 1 Year（not include the consumable parts） |
Cooling model | Air cooling/Water/Oil cooling |
Core Component Options
With low noise, no pollution, high precision and high reliability
