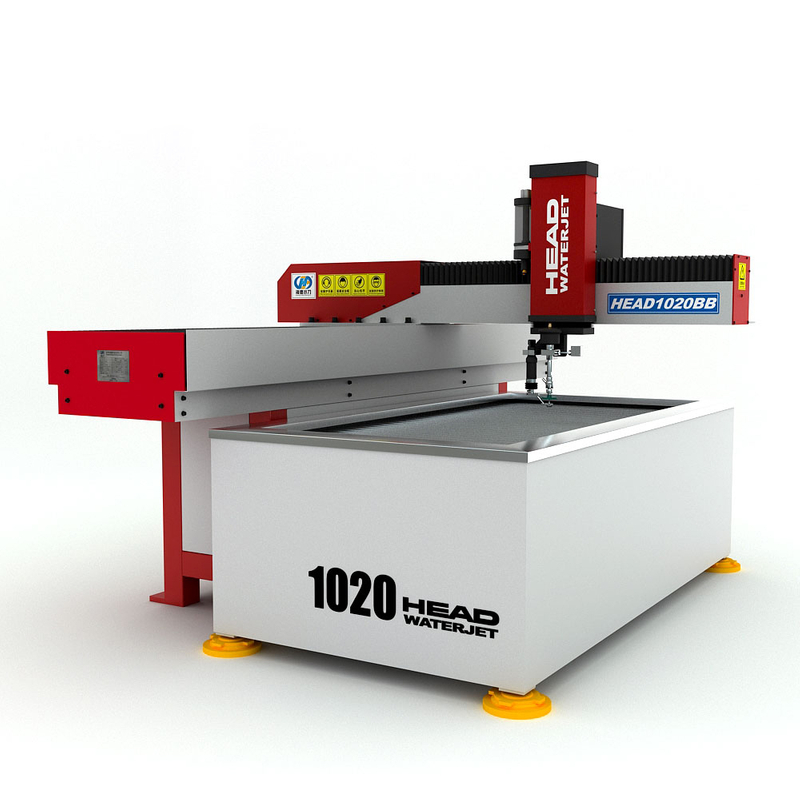

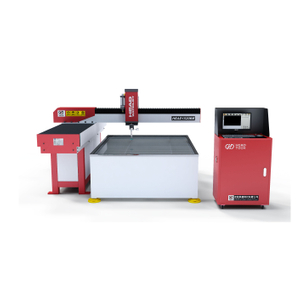

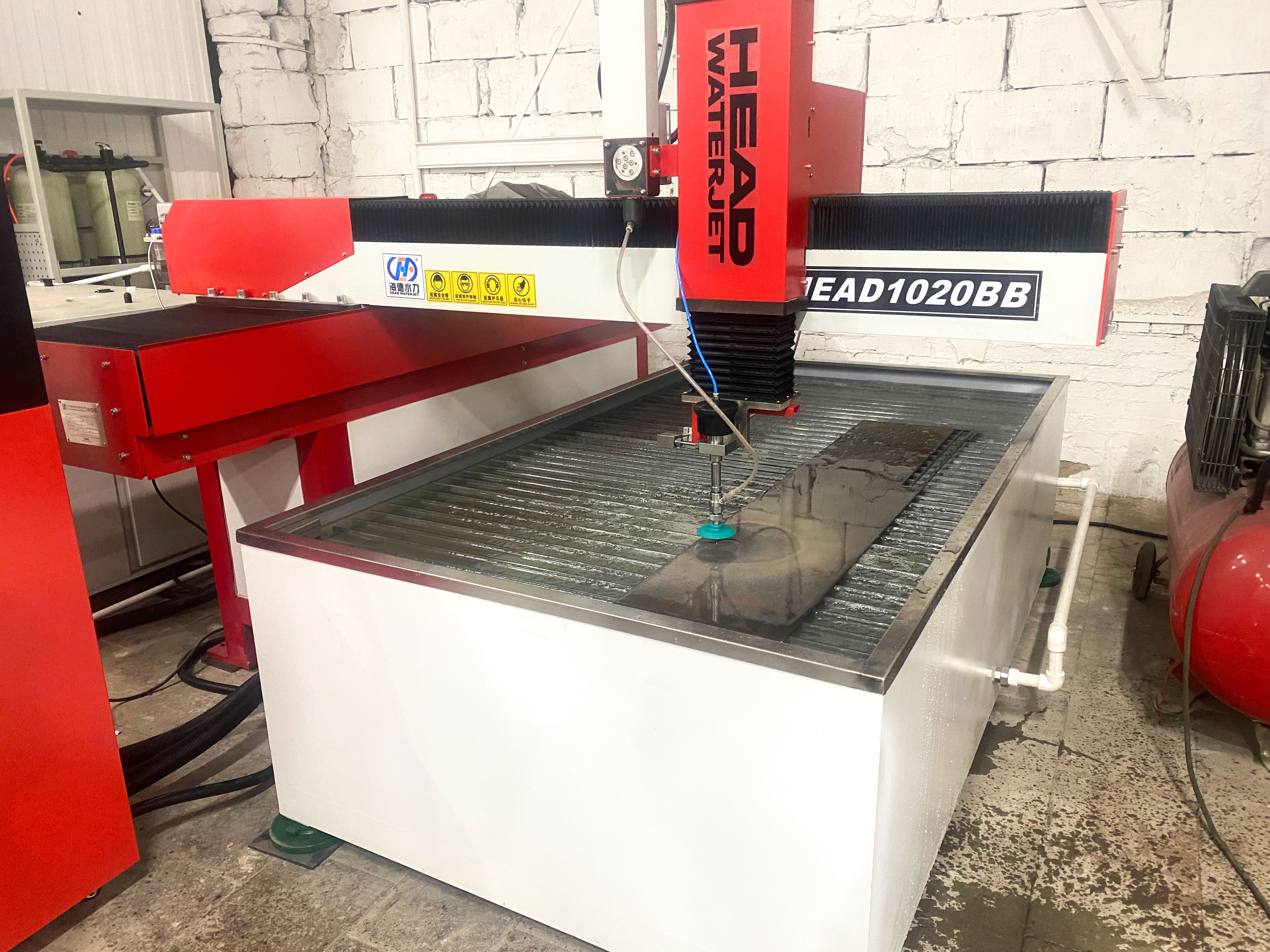

Cantilever Type 3 Axis Water Jet Cutting Machine

The Cantilever Water Jet Cutting Machine is designed with an open cantilever structure, providing maximum accessibility and flexibility for material handling. Unlike traditional closed-gantry machines, the cantilever design allows easy loading and unloading of materials from three different sides, significantly improving efficiency in daily operations.

Equipped with high-pressure water jet technology, the machine ensures cold cutting without heat-affected zones (HAZ), maintaining the integrity of materials such as metal, stone, glass, ceramics, and composites. Its modular design allows integration with abrasive water jet systems, making it suitable for both pure water cutting and abrasive cutting applications.

Key Advantages

• Three-Side Loading & Unloading
  Operators can load raw materials and unload finished products from the front, left, and right sides, greatly improving convenience, especially in workshops with limited space.

• Flexible Cutting Platform
  The open structure supports irregular-shaped workpieces and oversized sheets that are difficult to handle on enclosed machines.

• High Precision & Stability
  Advanced CNC control ensures ±0.05mm accuracy, delivering smooth cuts without secondary processing.

• Versatile Material Processing
  Capable of cutting metal plates, stone slabs, ceramic tiles, composites, and glass, making it ideal for multi-industry use.

• Easy Maintenance & Accessibility
  The cantilever structure provides open access for machine maintenance, nozzle replacement, and cleaning, reducing downtime.

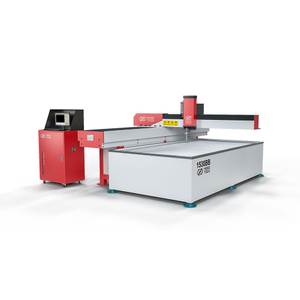

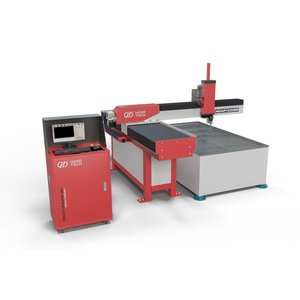

Customers can choose the model of cutting table according to your material’s size, the following is the standard models we can make!

Features

• Liquid-to-liquid boosting technology: stable and efficient pressure increase, imported parts guarantee long-term stability, worry-free operation!

• Military-grade material: made of 316L seamless steel pipe, anti-yield, anti-stretching, corrosion-resistant, durability increased by 50%!

• Extremely long maintenance-free: innovative "TDM" accumulator, life span exceeds 5000 hours, save worry, labor and money!

• Large-capacity buffer: 1.2-liter accumulator, reduce pressure loss, increase efficiency by 20%!

• Cooling device helps high pressure pump work better in hot places


• Beide brand motor: cast iron body, 10% energy saving, low noise and low vibration, rock-solid performance!

• 80 pump super large flow: 119L/min super power, reduce pipeline resistance, efficiency soared by 30%!

• ISO international standard oil pipe: resistant to pressure and fluctuation, leading system stability in the industry!

• Intelligent high and low pressure switching: adapt to different materials, finer cutting, 50% reduction in roughness! (Exclusive for A25+ version)

• Double insurance for pressure relief: high and low pressure water pressure relief valve, no dead angle for safety protection! (A25+ version optional)

• 7 kinds of intelligent protection:fault alarm, oil temperature monitoring, low pressure shutdown, motor protection, liquid level warning, filter element blockage warning, phase sequence protection, all-round protection of equipment!

• Automatic shutdown mechanism: abnormal situation response in seconds, equipment damage risk is zero!

1. Professional Installation & Comprehensive Training (Ensuring a Fast Start to Production)

• What we provide: Professional machine installation and commissioning by certified engineers, followed by systematic training for your operators, programmers, and maintenance staff.

• Your Benefits:

• Peak Performance from Day One: Ensures the equipment operates under ideal conditions from the start, avoiding accuracy issues or potential failures caused by improper setup.

• Empowered Team: Your operators learn to use the machine safely and efficiently, reducing material waste and preventing damage from user error, thereby maximizing productivity.

• In-House First Response: Your team will be equipped to handle routine maintenance and basic troubleshooting, reducing reliance on service calls and saving time and money.

2. Rapid & Responsive Technical Support (Maximizing Uptime)

• What we provide: 24/7 or extended business-hour support via hotline, online chat, or video, equipped with powerful remote diagnostic capabilities.

• Your Benefits:

• Instant Problem Solving: Simple issues are resolved immediately through expert guidance, eliminating waiting times.

• Precise Remote Diagnostics: Our technical team can remotely access your machine's system to quickly pinpoint the root cause of a problem, whether it's software, parameters, or hardware. Over 80% of issues can be solved remotely, drastically reducing downtime.

• Reduced Service Costs: Avoids unnecessary on-site visits, directly saving you travel and labor expenses.

3. Reliable Supply of Spare Parts & Consumables (Guaranteeing Production Continuity)

• What we provide: Local or regional parts centers stocked with high-quality, original (OEM) consumables and spare parts like garnet, nozzles, mixing tubes, and high-pressure seals.

• Your Benefits:

• Fast Access to Critical Parts: Key components can be delivered within 24-48 hours, preventing long production halts while waiting for parts.

• Guaranteed Cutting Quality: Using genuine OEM parts ensures optimal cutting performance and precision while extending the life of associated components, leading to a lower total cost of ownership.

• Simplified Procurement: A one-stop shop for quality-assured parts means you don't waste time and resources sourcing and testing inferior alternatives.

4. Preventive Maintenance & On-Site Service (From Reactive Repairs to Proactive Care)

• What we provide: Scheduled Preventive Maintenance (PM) contracts and, when necessary, rapid dispatch of certified field engineers for on-site service.

• Your Benefits:

• Extended Equipment Lifespan: Regular maintenance identifies and resolves potential issues before they become major failures, significantly extending the machine's life.

• Predictable Downtime: Schedule maintenance during planned production breaks instead of suffering unexpected, costly breakdowns during peak times.

• Efficient & Effective Repairs: When a site visit is necessary, engineers arrive informed by remote diagnostics and equipped with the correct parts to solve the problem on the first visit.

5. Continuous Upgrades & Optimization (Keeping Your Investment Valuable)

• What we provide: Regular software updates, hardware upgrade paths (e.g., to a 5-axis cutting head or a higher-pressure pump), and process optimization consulting.

• Your Benefits:

• Future-Proof Technology: Access the latest cutting technologies and efficiency improvements
