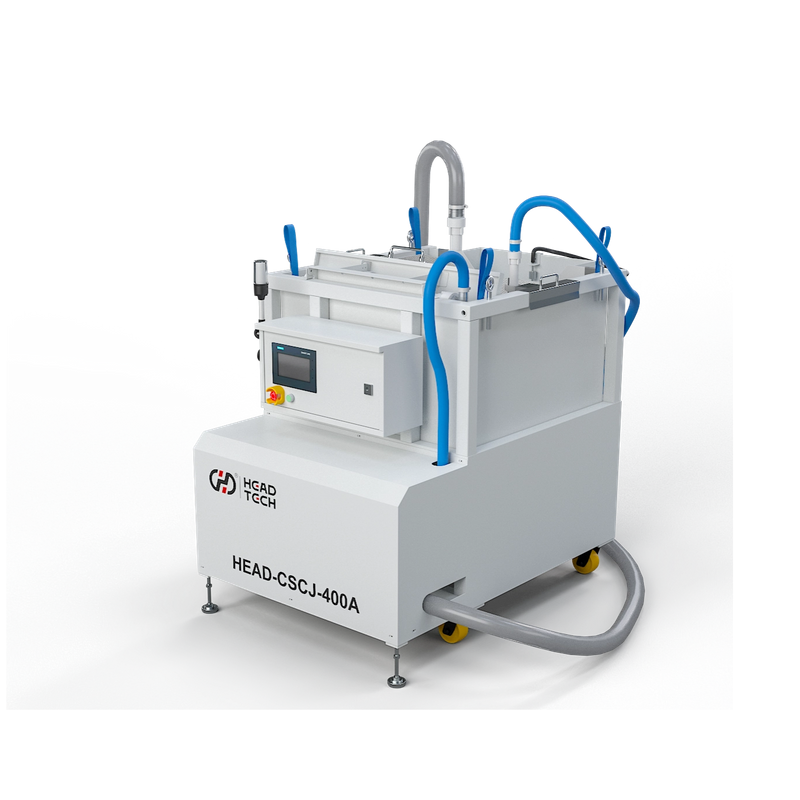

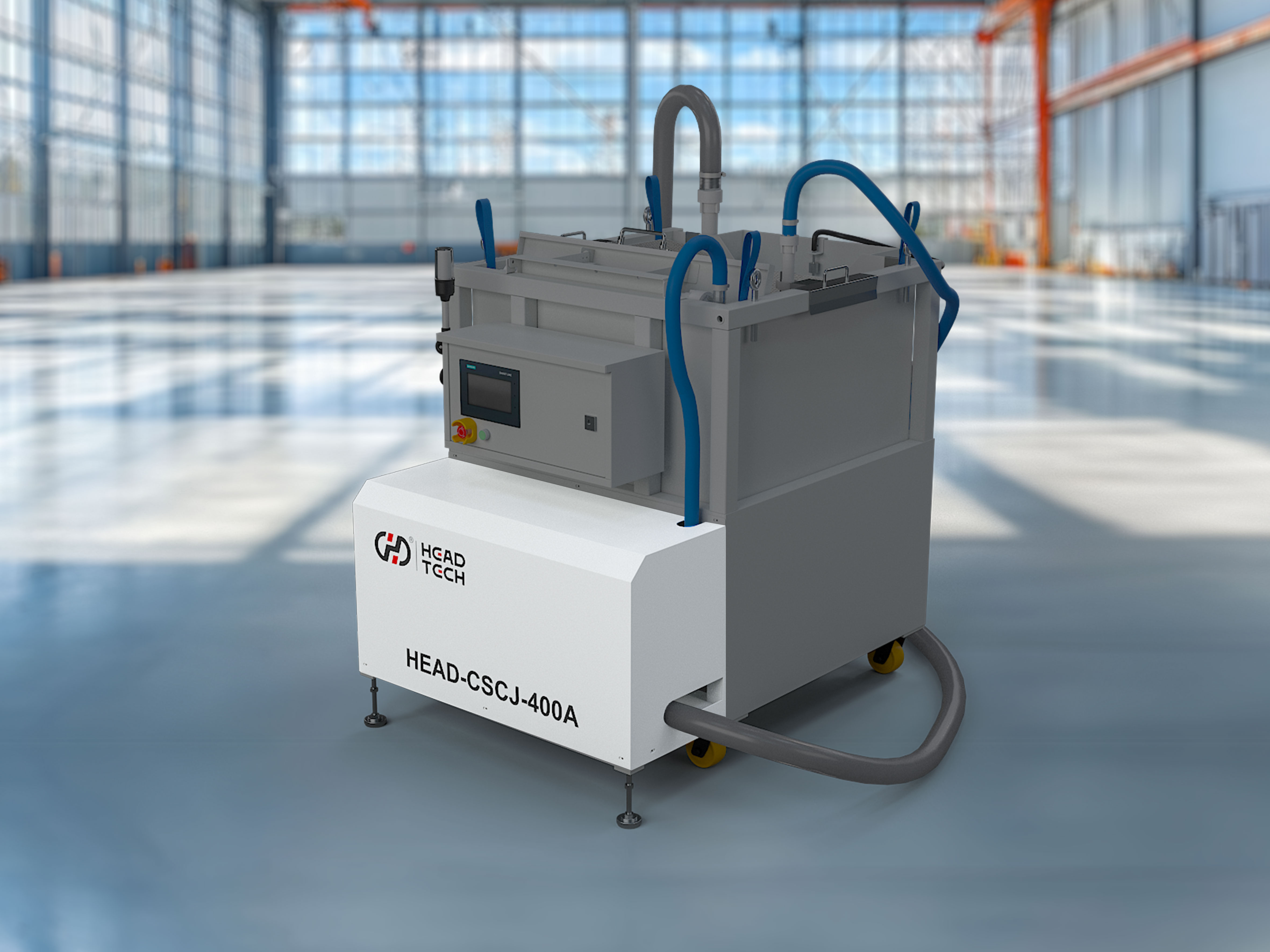

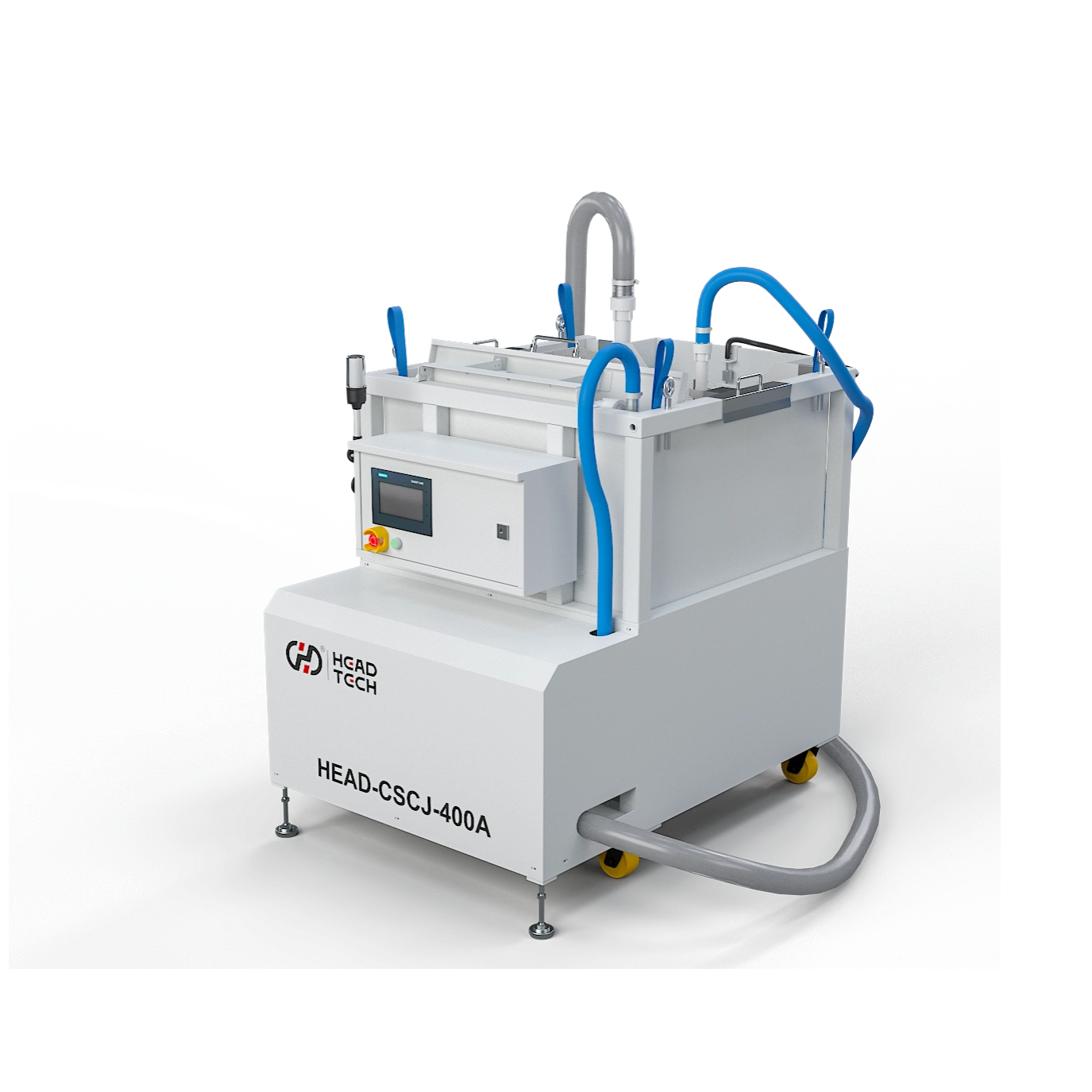

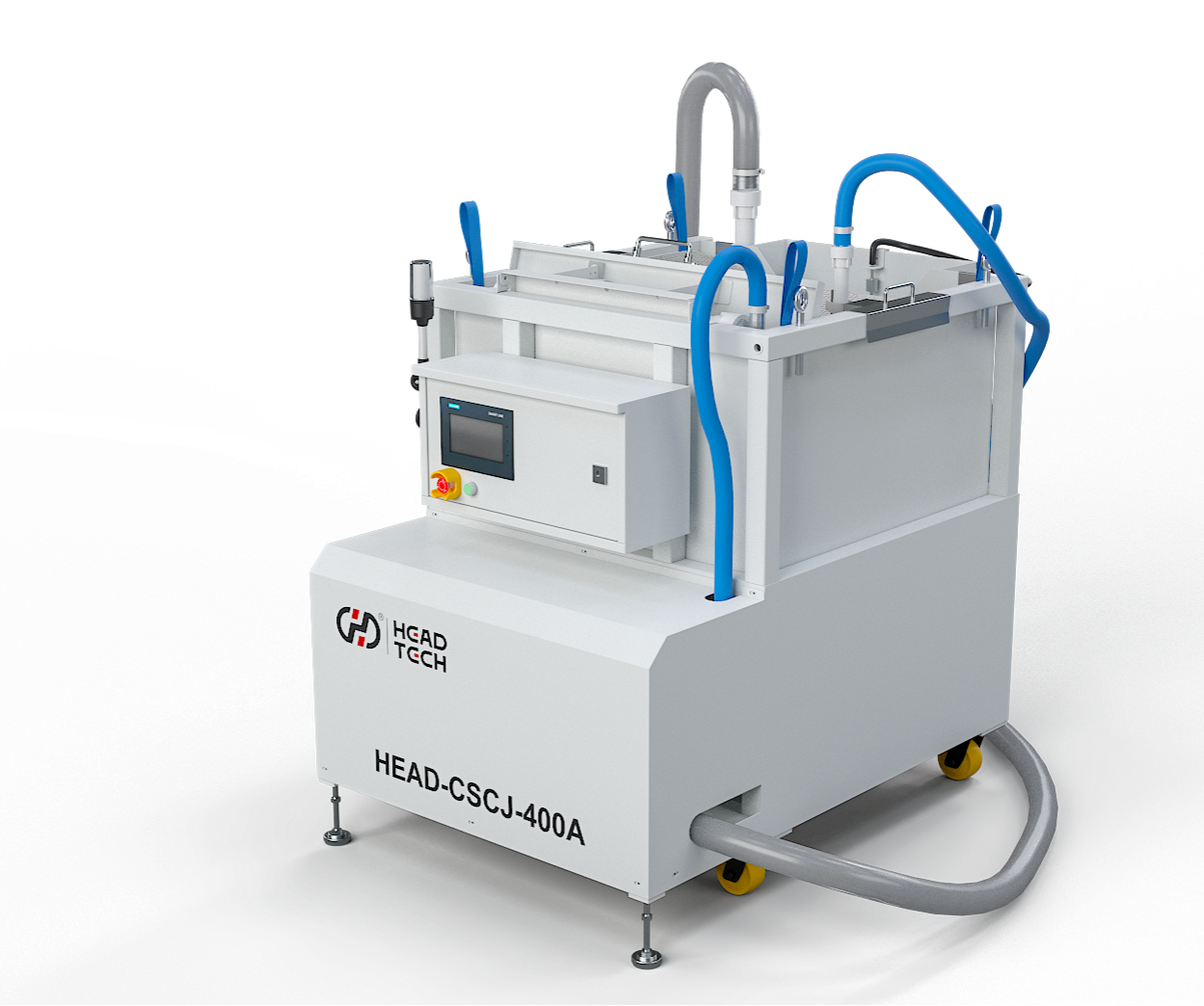

Sedimentation-Type Automatic Sand Removal System
The Sedimentation-Type Automatic Sand Removal System integrates intelligent control, energy efficiency, and high-performance separation into one compact solution — engineered specifically for abrasive waterjet cutting environments.
Designed for continuous operation without downtime, the system automatically completes the sand-water separation process. The filtered water is recycled through a sedimentation and circulation loop, significantly reducing both water consumption and labor costs.
Using an overflow sedimentation principle combined with a conical funnel flow design, the system ensures smooth discharge and high-efficiency sand separation. Equipped with an INVT smart touch screen and high-precision sensors, it allows intuitive operation and precise, automated control of water levels and sand discharge — no manual monitoring required.
In terms of protection and durability, the system’s electrical cabinet features IP54 dustproof and waterproof rating and a drip-edge structure, ensuring stable operation even in humid, high-moisture environments. The aesthetic protective enclosure not only enhances appearance but also effectively reduces noise and simplifies maintenance.
Supporting both manual and automatic modes, this system integrates a cyclic suction and discharge mechanism with an intelligent drainage device, achieving continuous sand removal and water recycling. The overall structure is solid, reliable, and built for long-term industrial use.
By combining efficiency, environmental protection, and ease of operation, this smart solution is the ideal companion for modern waterjet cutting systems, delivering cleaner performance, lower maintenance, and sustainable resource management.
![AbrasiveRemoval]( "AbrasiveRemoval")
High-efficiency recycling
This sand-water separation method, which combines overflow and sedimentation, automatically separates water and sand, reducing manual operation, improving sand-water separation efficiency and water resource recycling, and meeting high-efficiency and energy-saving standards.
![AbrasiveRemoval]( "AbrasiveRemoval")
With protective shield, it combines good looks and practicality.
The diaphragm pump is equipped with a protective cover, which not only enhances the overall visual appeal of the equipment with its aesthetic design, but also facilitates cleaning, reducing daily maintenance efforts. Furthermore, it effectively reduces operating noise by 20%-30%, significantly minimizing noise interference and creating a comfortable working environment for operators. It also reduces surrounding noise pollution, balancing aesthetics, practicality, and environmental friendliness for a comprehensive improvement in the user experience.
![AbrasiveRemoval]( "AbrasiveRemoval")

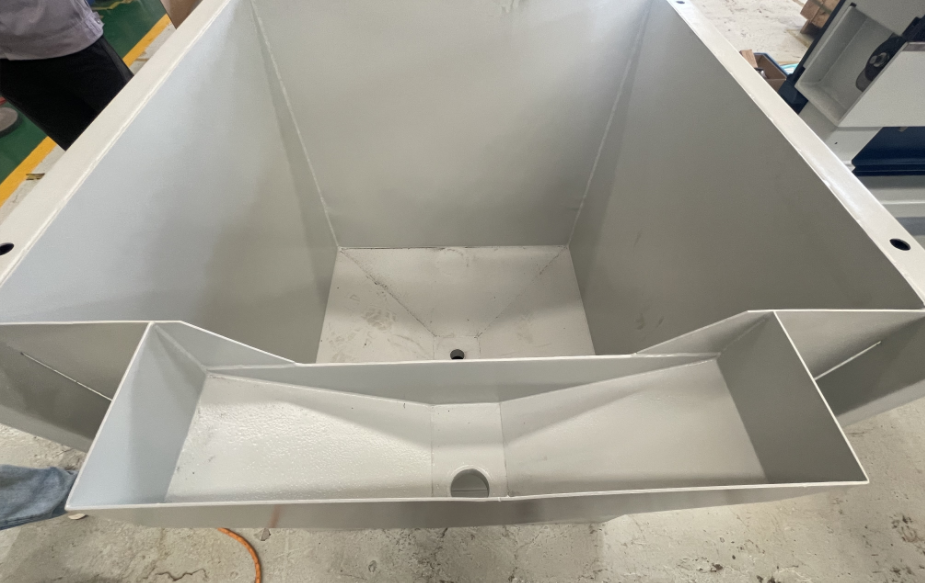

The funnel-shaped flow guide structure facilitates water overflow.
The funnel-shaped flow guide design, with its inclined structure perfectly matched to the flow guiding characteristics, guides water to naturally converge and flow rapidly, significantly reducing the risk of stagnation and facilitating smooth overflow of water.
![Abrasive Removal]( "Abrasive Removal")

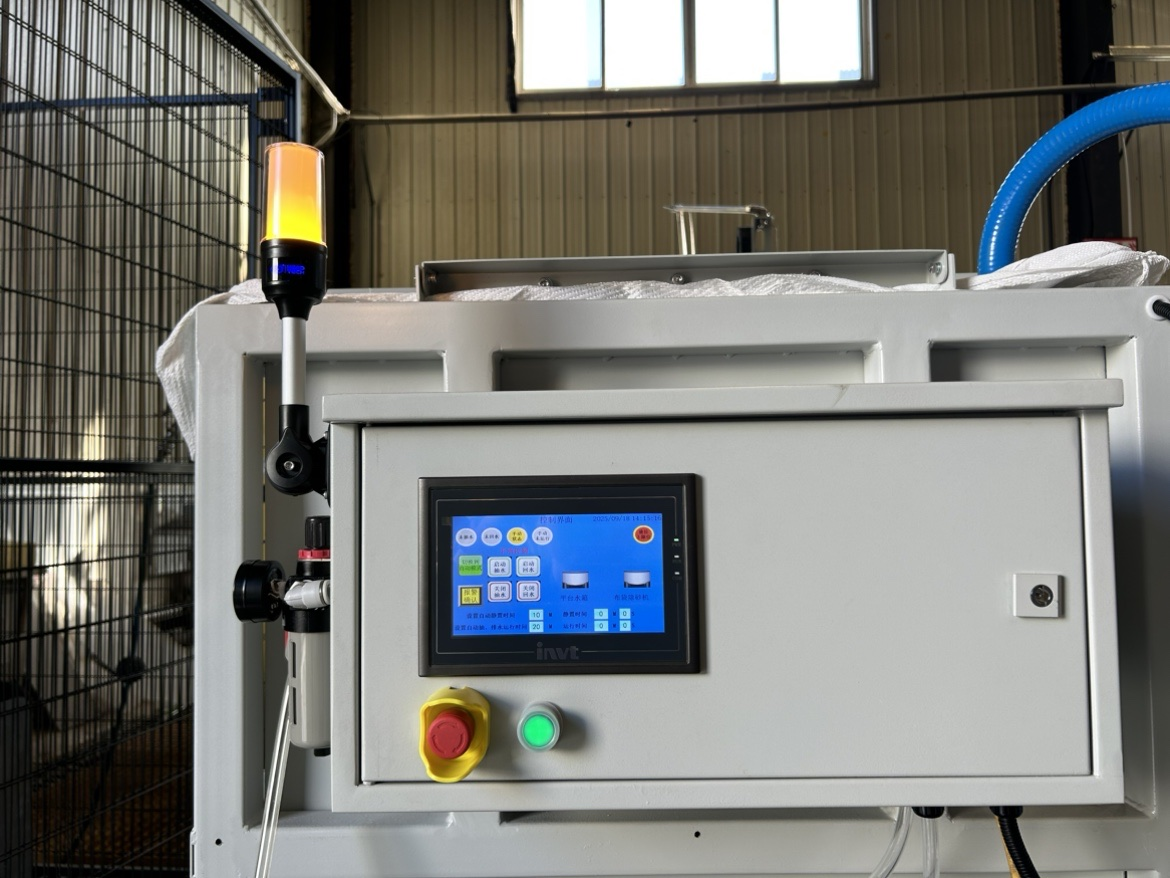

INVT Smart Touchscreen for Easier Operation
This device features an INVT intelligent touchscreen design with an intuitive and responsive interface, simplifying the operation process. Users can easily get started without complex training, saving time and effort by perfectly blending convenience and intelligence.
![AbrasiveRemoval]( "AbrasiveRemoval")

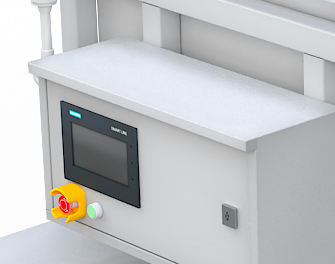

IP54 dustproof and waterproof + water-wicking edge for more reliable protection.
The distribution box is designed with an IP54 dustproof and waterproof rating and is equipped with a water guide rim, which can effectively prevent water intrusion and greatly improve the equipment's protection performance and operational stability in humid environments.
![AbrasiveRemoval]( "AbrasiveRemoval")

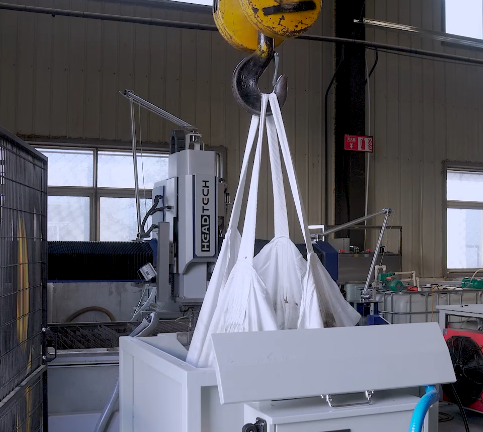

Equipped with hoisting ropes, hoisting is more labor-saving.
The sand removal operation is designed to be simple and efficient, equipped with lifting ropes, allowing forklifts or cranes to directly lift the ton bags, eliminating cumbersome procedures, saving time and manpower, and improving sand removal efficiency and operational safety.
![AbrasiveRemoval]( "AbrasiveRemoval")

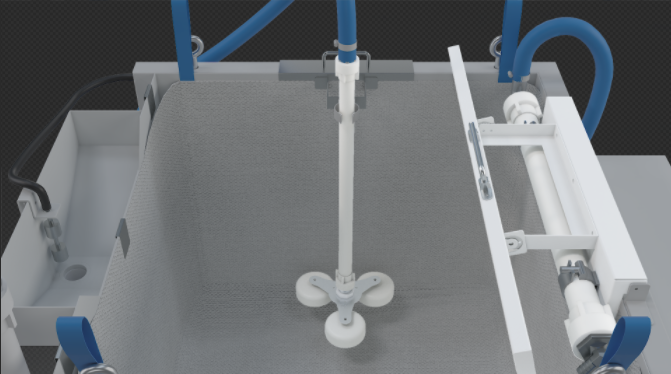

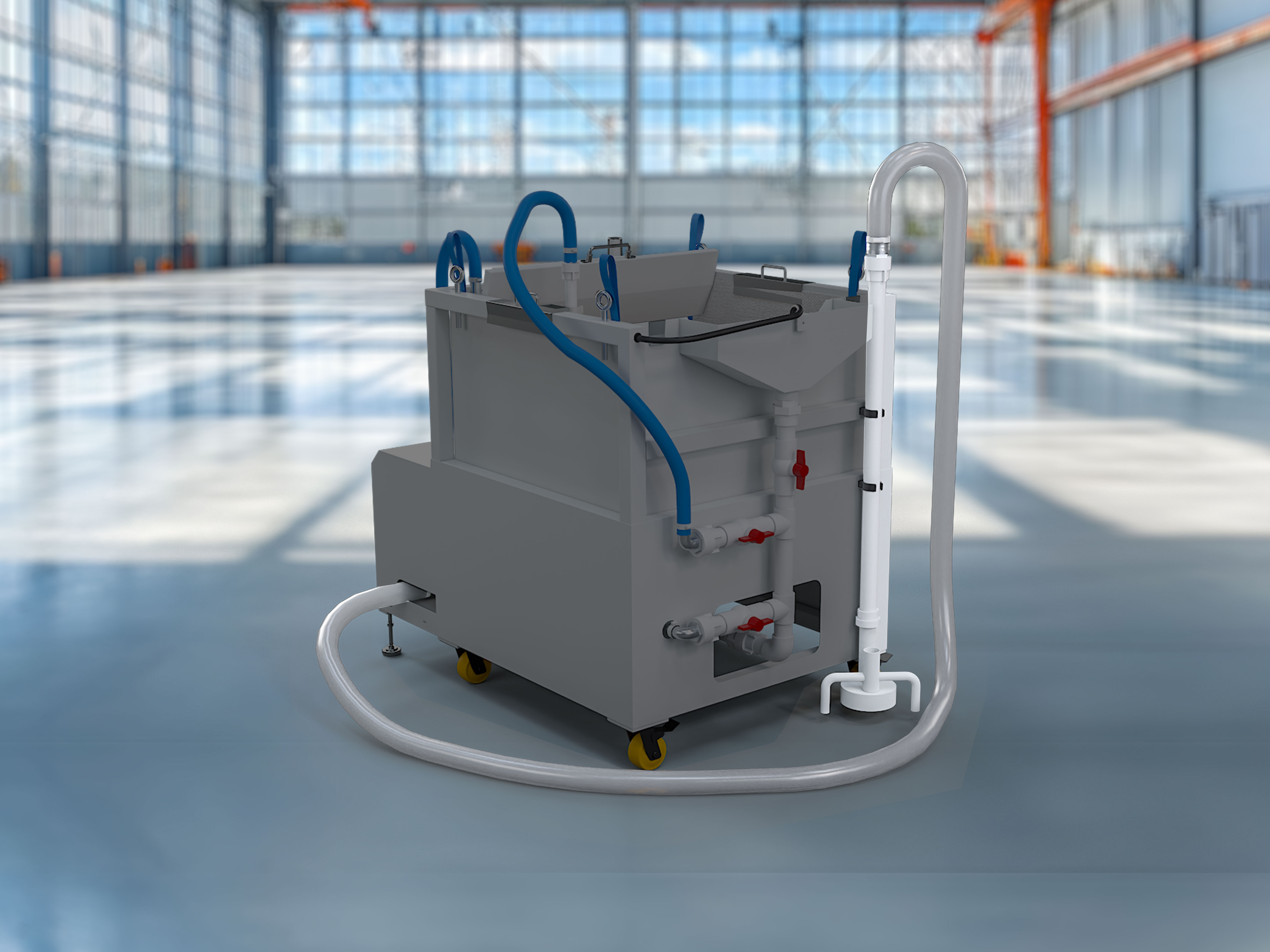

Circulating sand suction system: stronger and more stable sand suction
This device achieves water circulation between the sand remover and the water tank, saving water resources, solving the problem of sand deposition, improving sand suction efficiency, simplifying the sand and gravel processing process, reducing costs, and avoiding the problems of suction interruption and pipe blockage that occur in traditional equipment.
![AbrasiveRemoval]( "AbrasiveRemoval")

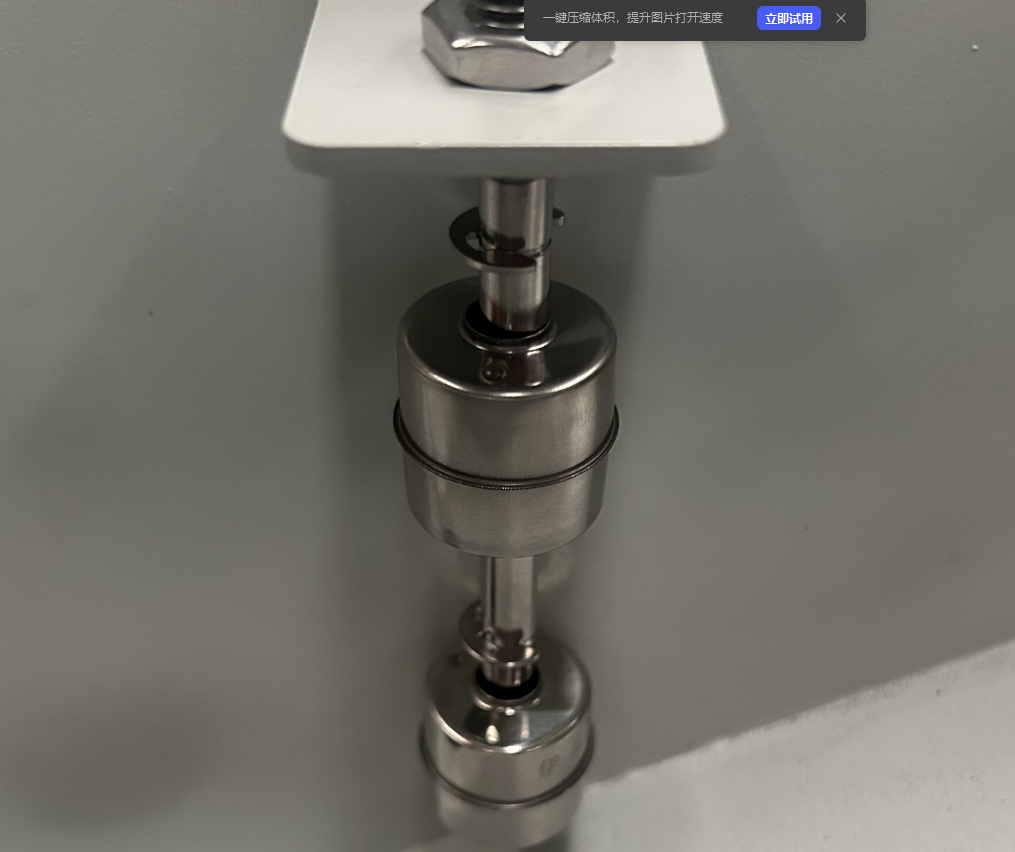

High-precision sensors require no monitoring and are more energy-efficient.
This device is equipped with a high-precision float switch sensor, enabling accurate detection of water level. The device starts when the water level reaches the set value; when the water level exceeds the maximum set value, the system will issue an alarm signal and shut down. No real-time monitoring is required, and the water level detection error is less than 1cm, ensuring high efficiency and reliability.
![AbrasiveRemoval]( "AbrasiveRemoval")
Intelligent drainage device stabilizes water level and improves efficiency
This device utilizes a floating design to descend in sync with the water level, while simultaneously returning the discharged water to the tank, effectively achieving water resource recycling. It also avoids conflicts between cleaning operations and drainage needs, further improving the overall operational efficiency and economy of the sand removal system.
